Fueling

OCV 800C

Interface Float Pilot - Side Mounted

The OCV 800C side-mounted filter separator float allows only the discharge of clean, water-free fuel from the filter separator. The model information is listed as follows:

800C-5 | Part# 230727 | Flange Material: Aluminum | Pilot/Float Assembly: Stainless Steel

Downloads

Product Page (PDF)

EN (USA)

IOM (PDF)

EN IOM

Technical Specifications

Size Unit

Working pressure range

20.7 bar

Working temperature

0°- 49°C
OCV 800C

OCV 800C

OCV 800C

OCV 800C

Features and Benefits

Side-mount flange
  • Fits most brands of filter separators
  • Cylindrical float for small, mobile separators
Stainless steel pilot & float assembly
  • No red metals
  • Pilot float "rides" the interface between water & fuel
Four-way controls
  • Actuates discharge slug valve and/or automatic water drain valve

Related Products

OCV 800

Interface Float Pilot Block
OCV AF 800B

OCV 800B

Interface Float Pilot - Bottom Mounted

OCV 800D

Interface Float Pilot - Side Mounted

OCV 800H

Interface Float Pilot - Bottom Mounted

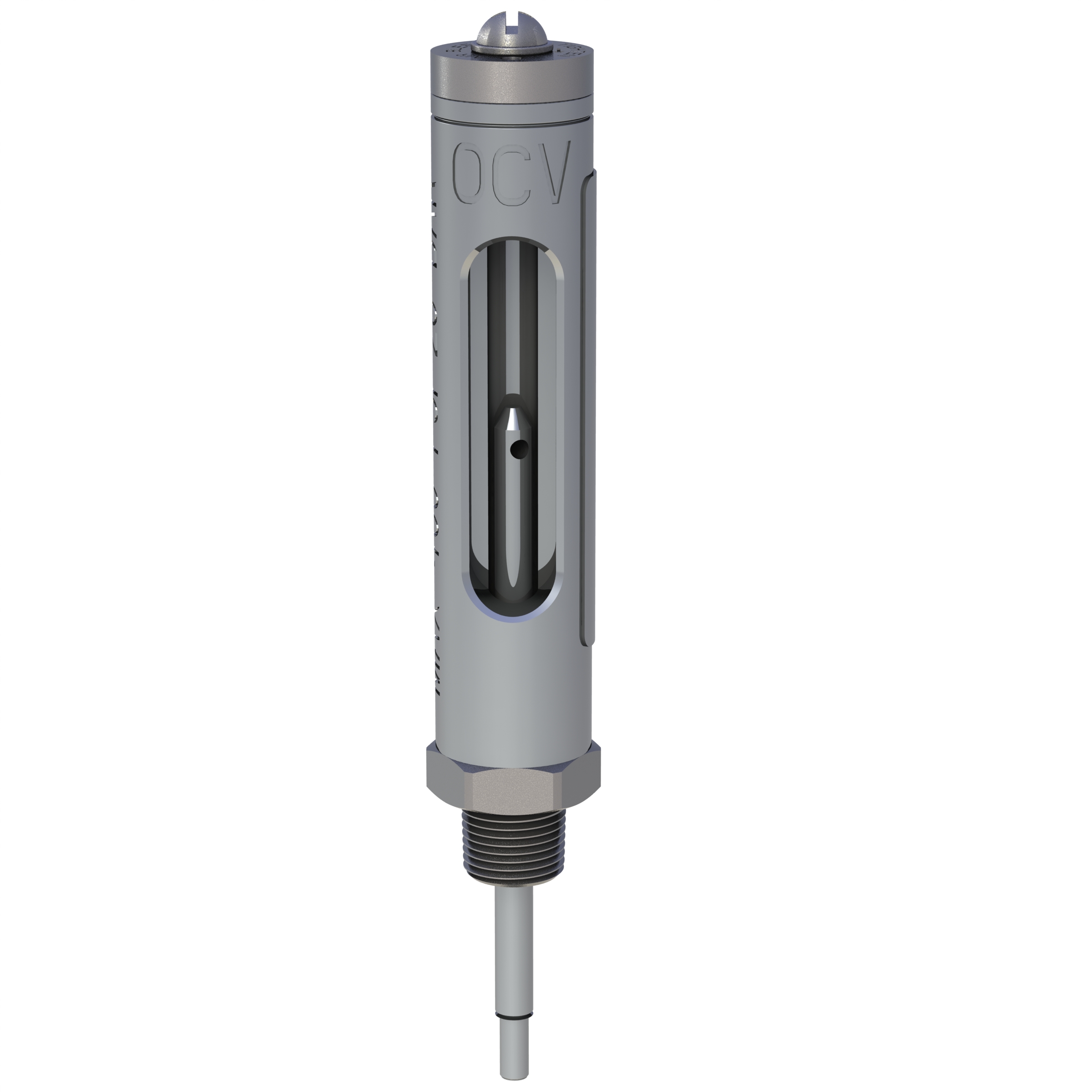

OCV 155L front 2
