OCV 800

Interface Float Pilot Block

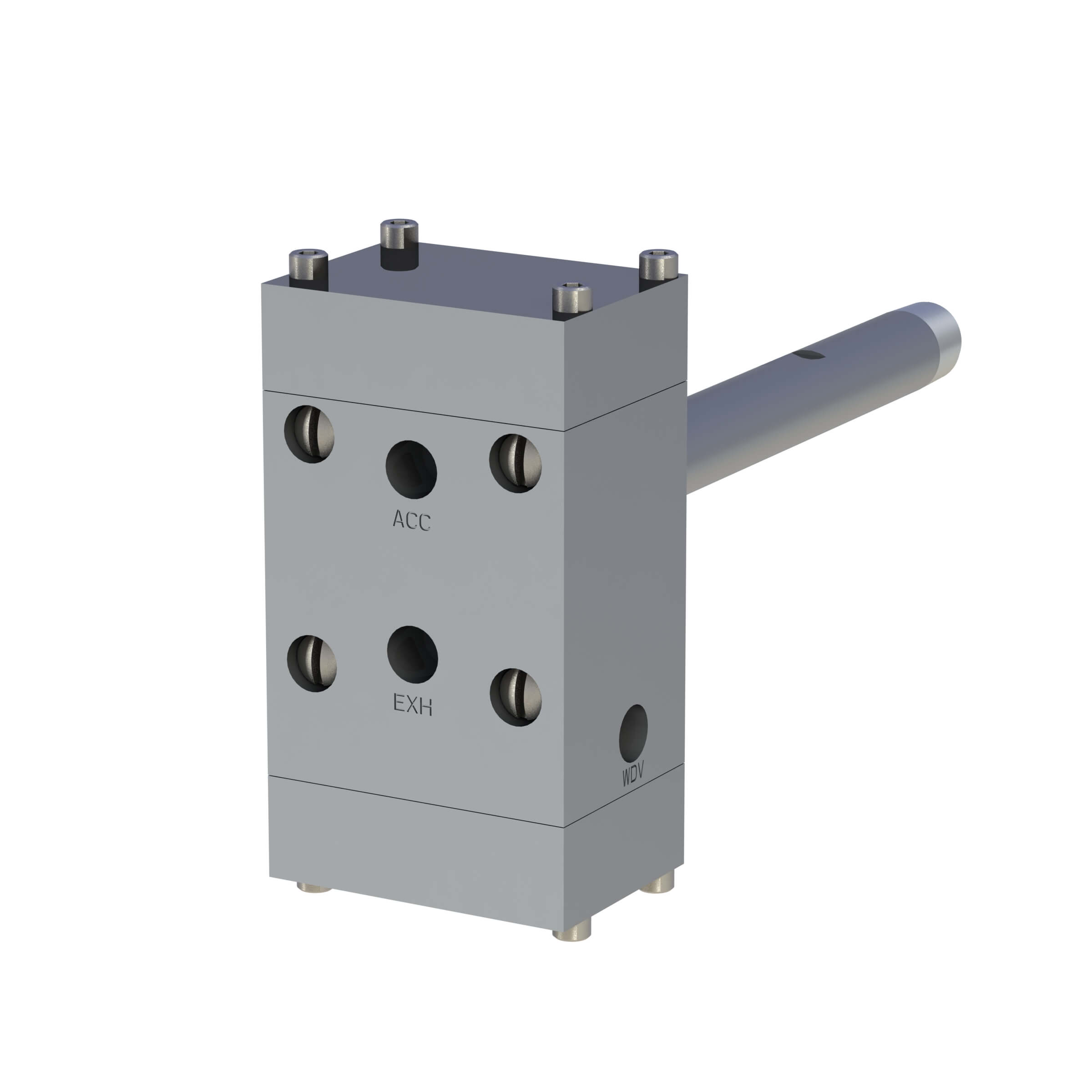

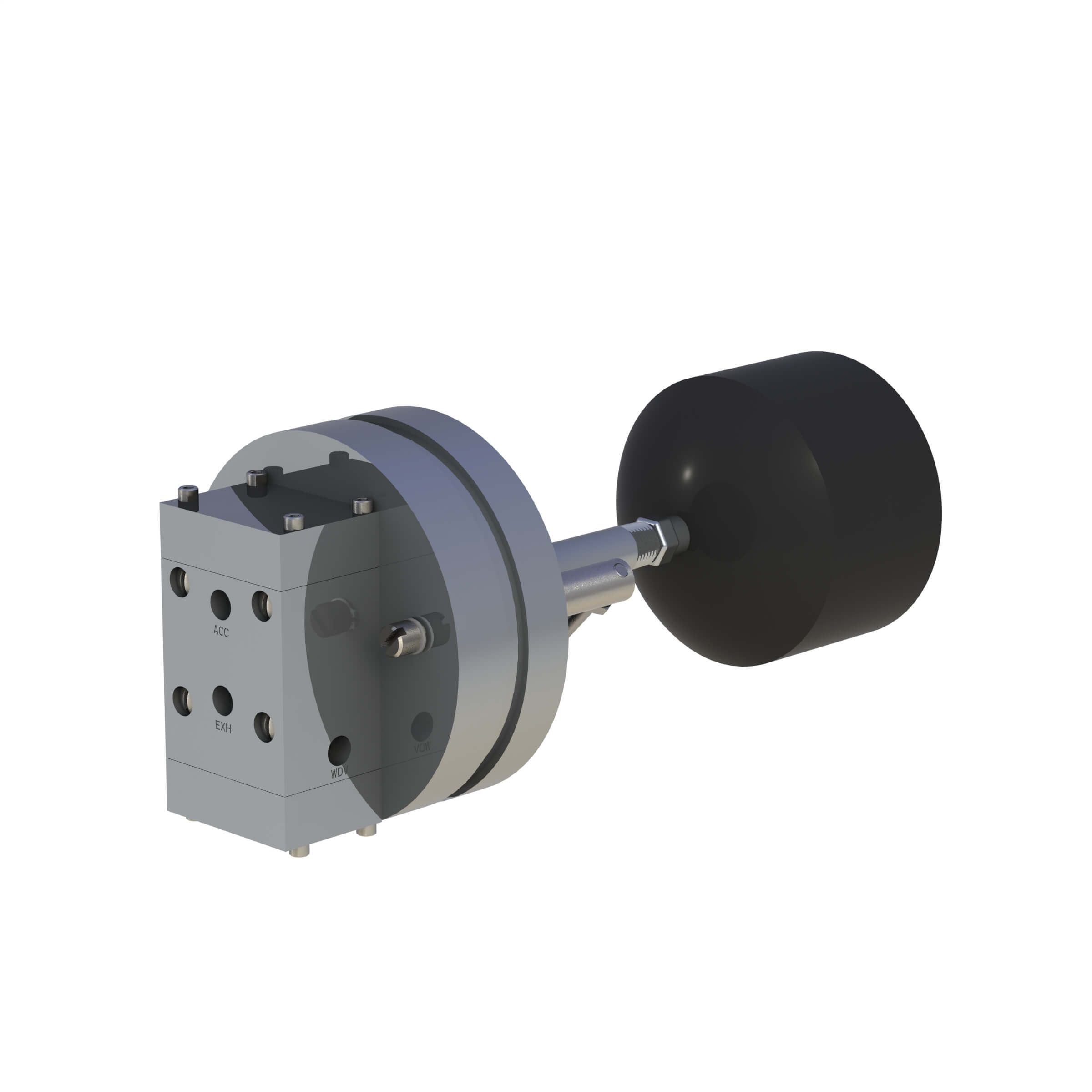

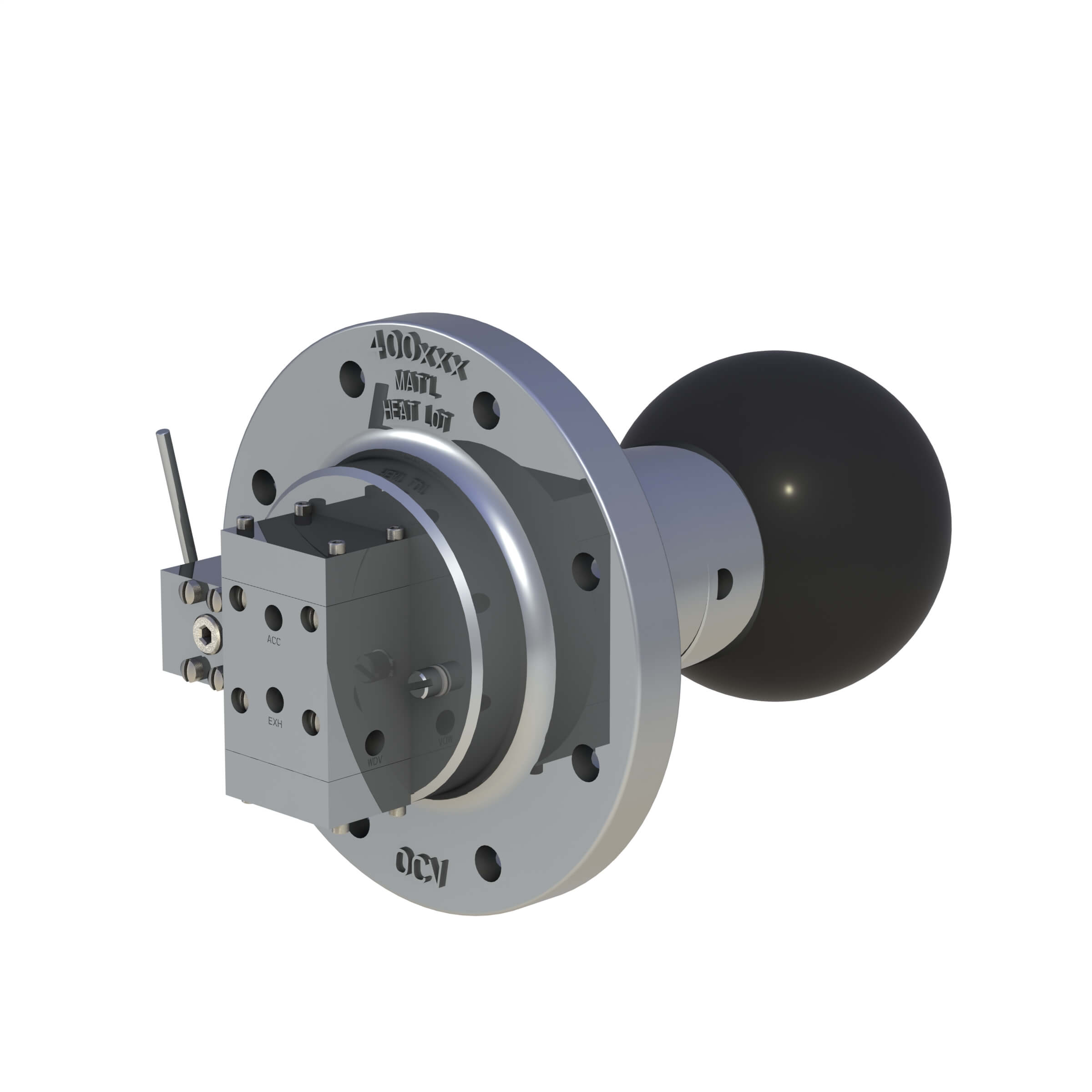

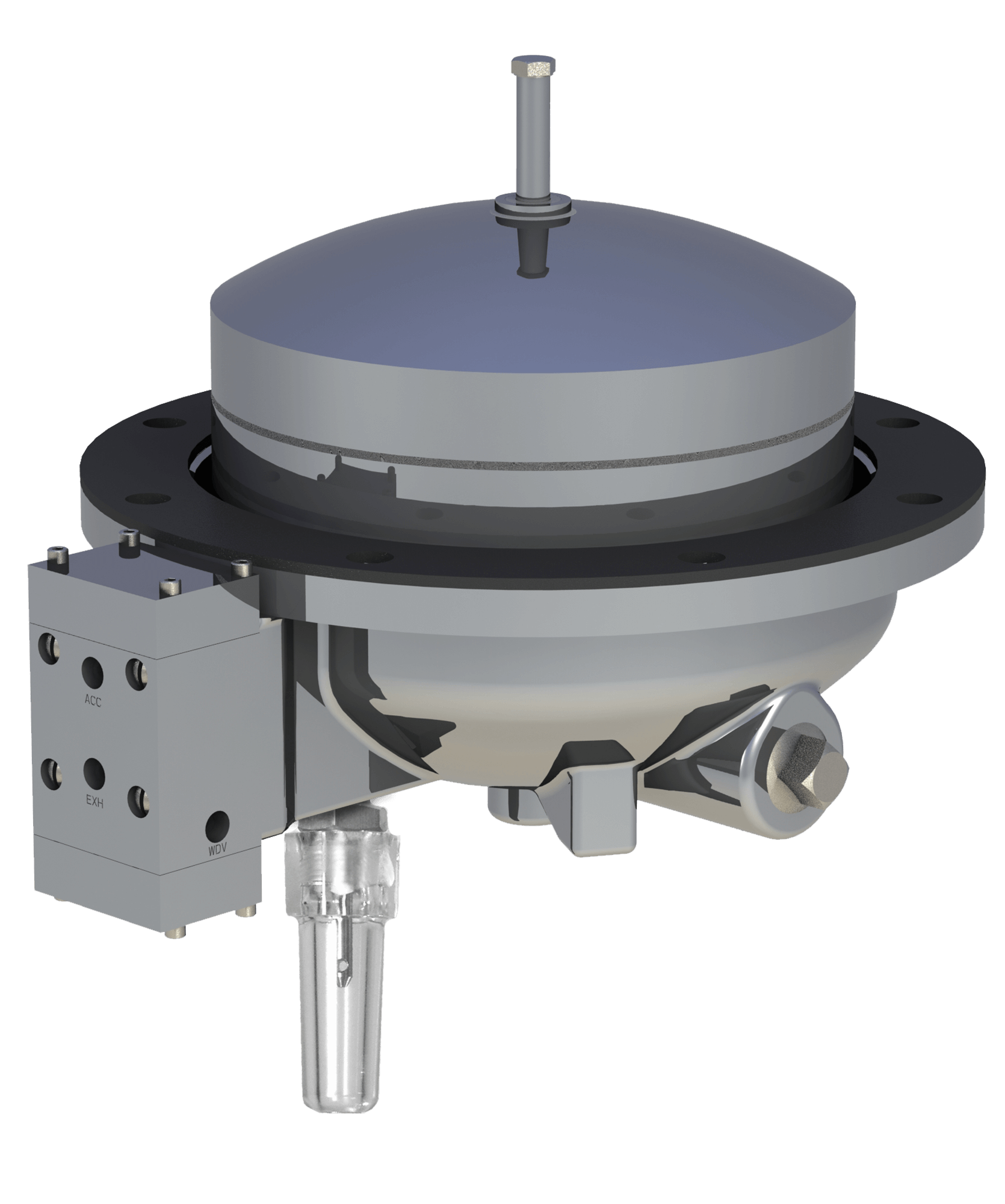

The OCV 800 pilot block is the key control element of all OCV filter separator float controls. Its sole purpose is to allow only the discharge of clean, water-free fuel from the filter separator. The 800 pilot is used on four different float assemblies, as shown below. 800B | Bottom-mount / 7.5" diameter flange 800C | Side-mount / 4" Victaulic connection 800D | Side-mount / 8" diameter flange 800H | Bottom-mount / 10" diameter flange / low-profile float
Downloads

Product Page (PDF)

IOM (PDF)

Technical Specifications

Size Unit

Working pressure range

20.7 bar

Working temperature

0°- 49°C

Features and Benefits

Resilient seating
  • Resists leakage
Pressure balanced design
  • Operates with low friction
  • Accurate & responsive movement to rising water
Stainless steel construction
  • No red metals
  • Time-proven design
Four-way controls
  • Actuates discharge slug valve and/or automatic water drain valve
