Pressure Reducing & Pressure Relief Valves

An automatic, pilot controlled, pressure relief valve, actuated by the pipeline pressure. The valve modulates to maintain a steady, predetermined pressure in the network. Should the upstream pressure exceed the required set point, the valve opens, releasing the excessive pressure. When the pressure falls below the set value, the valve closes drip tight.

Go to S100 44, 77 Series

Certifications

ABS Certification - Control Valves

Lloyd's Register Certification

1200px Official seal of the American Recovery and Reinvestment Act of 2009

STE American Made/Recovery.gov

PED

Pressure Equipment Directive 2014-68-EU Certificate Rev 4

Downloads

Product Page (PDF)

IOM (PDF)

Technical Specifications

Size Unit

Size range

DN50 - DN600 (2” - 24")

Fire Protection certifications

UL Listed

Model 44 (Threaded): DN50-80 / 2”-3”

Model 77 (Flanged): DN80-200 / 3”-8”

Pressure rating

PN16

Working temperature

0ᵒ – 85ᵒ C

End connection type

Flanged

ISO-PN16 & ISO-PN25

ASME/ANSI B16.42 & B16.5 Class 150# & Class 300#

Grooved

ASME/ANSI AWWA 606

Sizes: 2″-8″

Threaded

Sizes: 1″-3″

Materials of construction

Body and Cover

Ductile Iron ASTM A536

Stainless Steel ASTM CF8M

Cast Steel ASTM A216 & A352 LCB

NAB ASTM B148 C-958000

Internal Parts

Stainless Steel

Diaphragm

Neoprene (standard)

NR

NBR

EPDM

Control Trim & Accessories

Brass / Bronze / Copper (standard)

Stainless Steel

Super Duplex

Monel

NAB

* Other optional materials available upon request

$OCV 44, 68 ,77 PS\UL$

OCV 44, 68 ,77 PS\UL

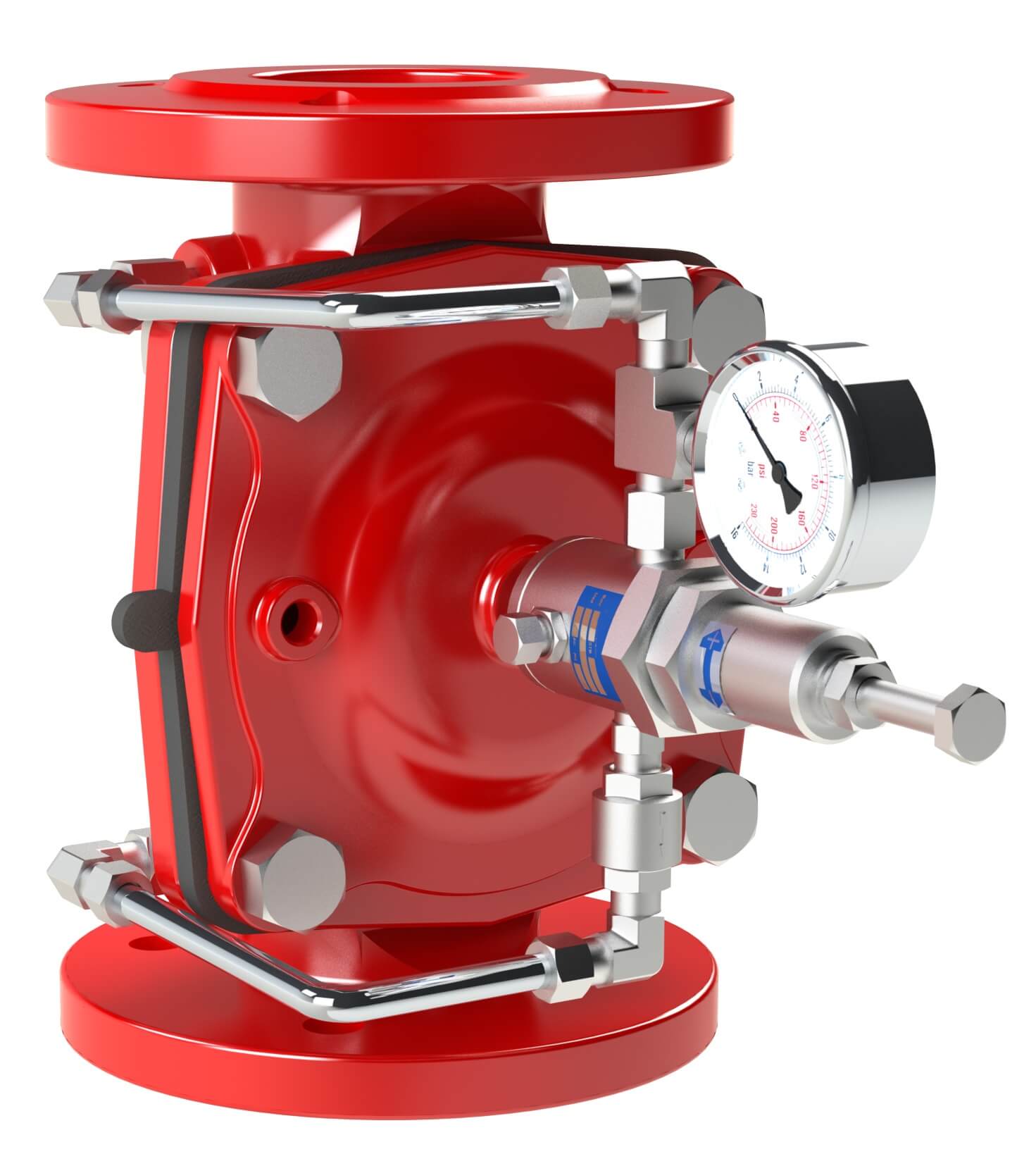

OCV 68 PS\UL

OCV 77 PS\UL

$OCV 44, 68 ,77 PS\UL$

Features and Benefits

Robust valve with superior design

Designed for high pressure & flow, with low pressure losses

Simple, straight-forward design

Easy, simple structure - only 3 main parts
Extremely reliable for increased longevity
Low maintenance costs

Large selection of materials & coatings

UV protected for outdoor installations
Special materials available, for any fluid type or corrosive environment

Out-of-the-box valves, fully assembled & tested

Plug & play, quick & easy installation
Suited to vertical & horizontal installation, with no modifications

Available with explosion-proof control devices

Suitable for hazardous, flammable & explosion-classified areas

Tested & certified

UL Listed, ABS Type Approval, Lloyd’s Register Approval, fire tested, ANSI Class seat leakage declaration
