Eliptix R-30 Series

Powering High-Pressure Systems with Breakthrough Valve Technology

The Eliptix R-30 Series hydraulic control valves are built with a durable metal body and feature an innovative elliptical-shaped diaphragm for enhanced precision and reliability. Designed to withstand high-pressure conditions, ELIPTIX R-30 series ensures consistent performance and long service life; even in the most demanding agricultural and water management environments. Combining robust construction with efficient hydraulic operation enables these valves to provide a highly dependable solution for irrigation networks, water transmission lines and large-scale infrastructure systems.

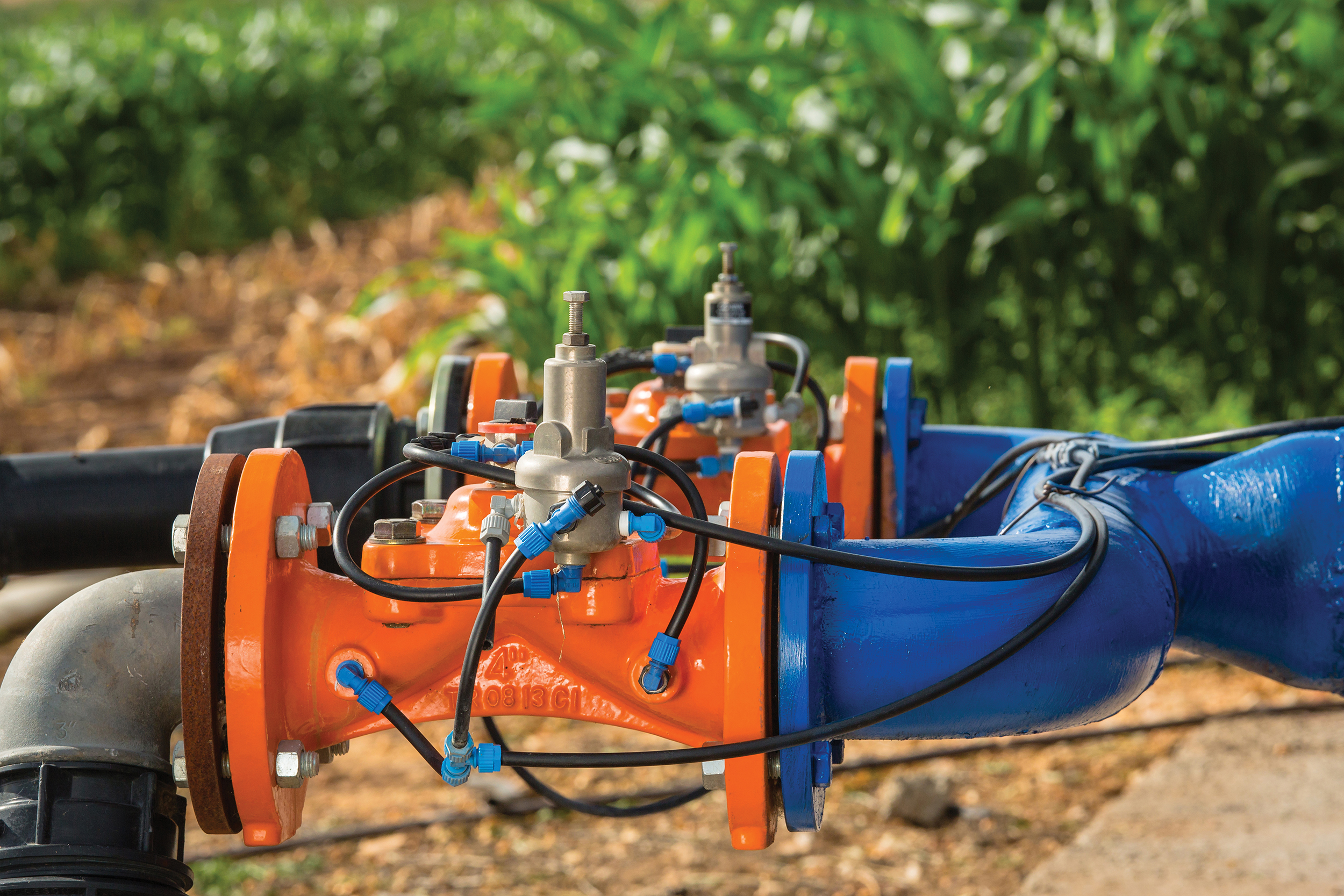

EREZ8098

Standout Features

R 30 3 FLANGE ISO R 30 3 F SECTION 2 ISO

Elliptical diaphragm design for fast, accurate operation

Robust metal body is durable against wear & corrosion

High pressure capability

Low head loss, boosts system efficiency & lowers costs

Flexible installation with all types of connections

Self-flushing filter for smooth operation & minimal service

Standout Features

R 30 3 FLANGE ISO

Elliptical diaphragm design for fast, accurate operation

Robust metal body is durable against wear & corrosion

High pressure capability

Low head loss, boosts system efficiency & lowers costs

Flexible installation with all types of connections

Self-flushing filter for smooth operation & minimal service

Features & Benefits

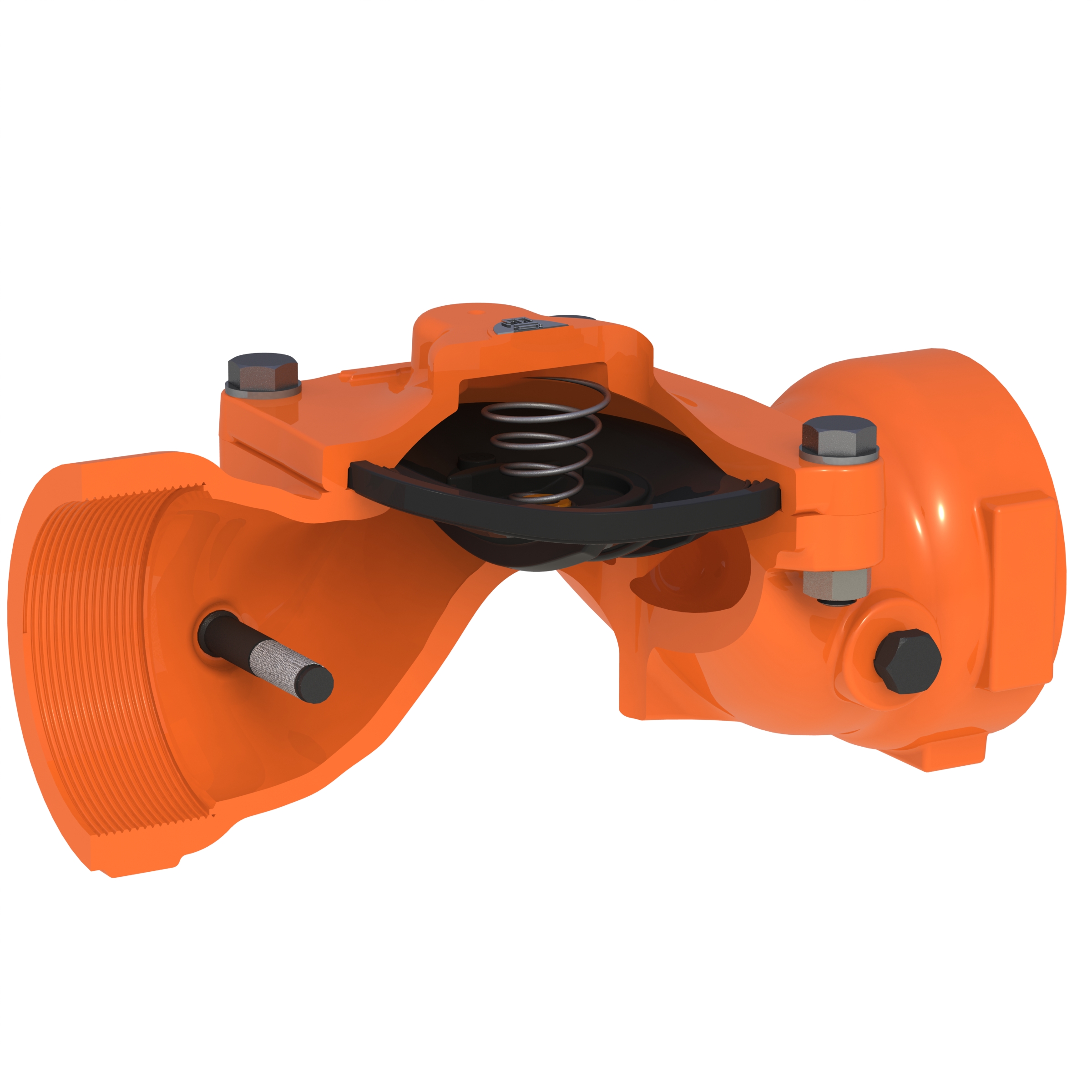

R 30 3 F SECTION 2 ISO
1

Small Chamber Volume

Rapid response design, that quickly adapts to pressure and flow changes, ensuring reliable water delivery
2

Advanced Elliptical-shaped Diaphragm

Enables faster, more precise valve operation, uniform system performance & better infrastructure protection
3

Robust Metal Construction

Highly durable, wear and corrosion-resistant, suitable for heavy-duty, high-pressure applications
4

Control trim with self-flushing filter

Reduces periodic inspection, cleaning & maintenance, saving on labor costs
5

Structural Simplicity

Easy to maintain, provides extreme reliability & long-lasting performance in demanding conditions
Downloads

Product Page (PDF)

EN

Technical Specifications

Size Unit

Size range

DN25 - DN400 (1"- 16")

Pressure rating

PN10, PN16

Working temperature

5ᵒ – 60ᵒ C

End connection type

Threaded, Flanged, Grooved

Standard construction materials

Body and Cover

Ductile Iron

Internal Parts

Stainless Steel and Polymer

Seals + Diaphragm

Natural Rubber
EPDM

* Other optional materials available upon request

Control Function

Pressure Regulation
Flow Regulation
Level Control
On/Off
  • Pressure Regulation
  • Flow Regulation
  • Level Control
  • On/Off
IRG R30 4 PS LEFT
ELIPTIX R-30 SM (3W)
Weir-type, Elliptical-shaped Diaphragm, 3-way Manual Override, Pressure Sustaining Control Valve
IRG R30 4 PR LEFT
ELIPTIX R-30 RM (3W)
Weir-type, Elliptical-shaped Diaphragm, 3-way Manual Override, Pressure Reducing Control Valve
IRG R30 4 PR 68 410 LEFT
ELIPTIX R-30 R (2W)
Weir-type, Elliptical-shaped Diaphragm, 2-way, Pressure Reducing Control Valve
IRG R30 4 QR LEFT
ELIPTIX R-30 Q (2W)
Weir-type, Elliptical-shaped Diaphragm, 2-way, Quick Pressure Relief Control Valve
