Eliptix R-20

Innovative Valves with Revolutionary Diaphragm Design

The Eliptix R-20 Series hydraulic control valves are built with a strong, corrosion-resistant composite body and feature an innovative elliptical-shaped diaphragm for precise, efficient flow regulation. These valves combine lightweight construction with robust hydraulic control; enabling reliable performance across a wide range of irrigation applications. Ideal for agricultural irrigation systems and water transmission networks, ELIPTIX R-20 series offer durable performance, flexible installation options and reduced maintenance requirements, to meet demands for long-term system efficiency.

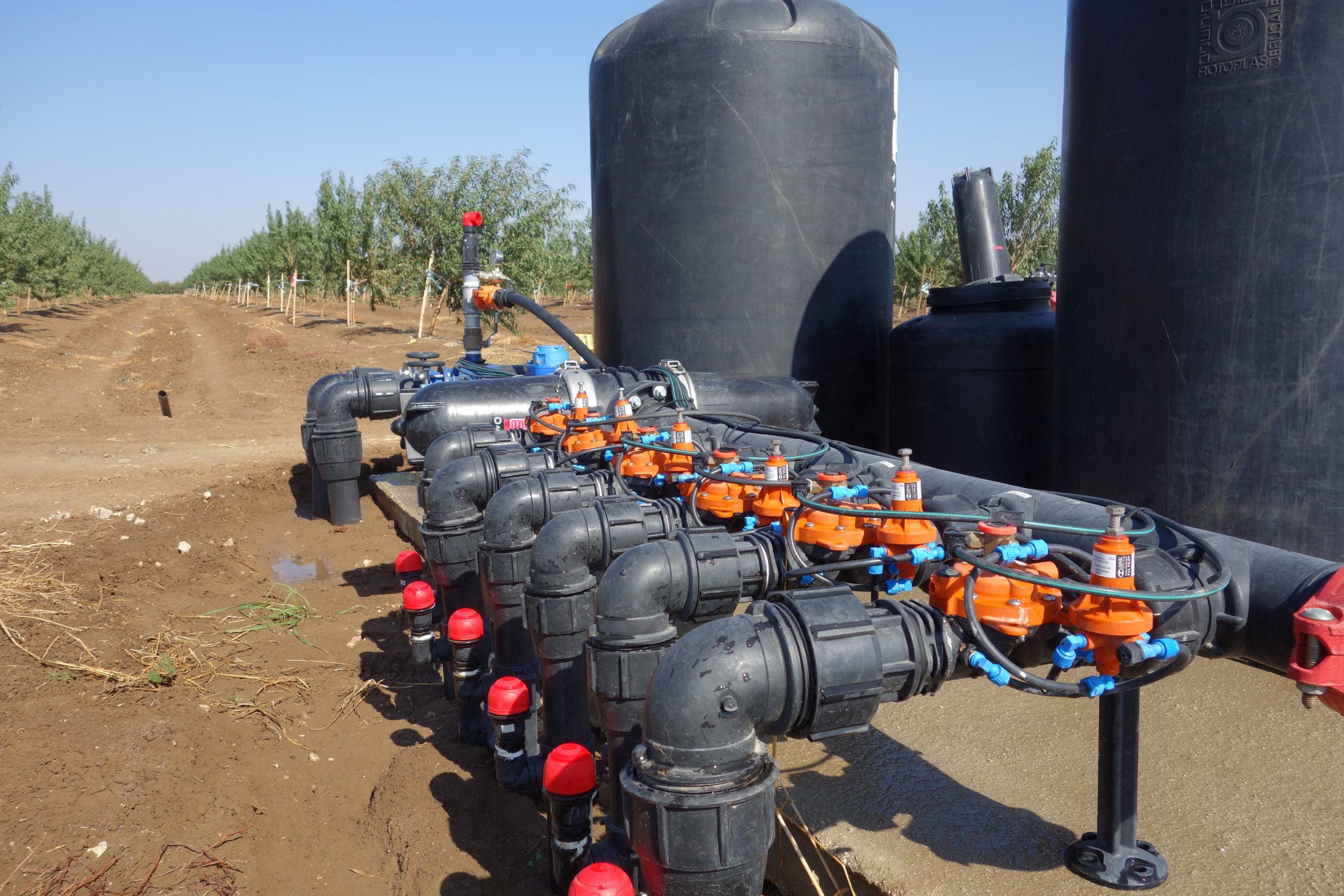

DSC08159

Standout Features

R 20 3 ISO R 20 3 F SECTION 2 ISO

Elliptical diaphragm design for fast, precise control

Lightweight polymer body, corrosion-resistant & easy to handle

Wide pressure range, supports both drip & sprinkler systems

Low head loss, improves flow and reduces energy costs

Flexible installation with all types of connections

Self-flushing filter for smooth operation & minimal service

Standout Features

R 20 3 ISO

Elliptical diaphragm design for fast, precise control

Lightweight polymer body, corrosion-resistant & easy to handle

Wide pressure range, supports both drip & sprinkler systems

Low head loss, improves flow and reduces energy costs

Flexible installation with all types of connections

Self-flushing filter for smooth operation & minimal service

Features & Benefits

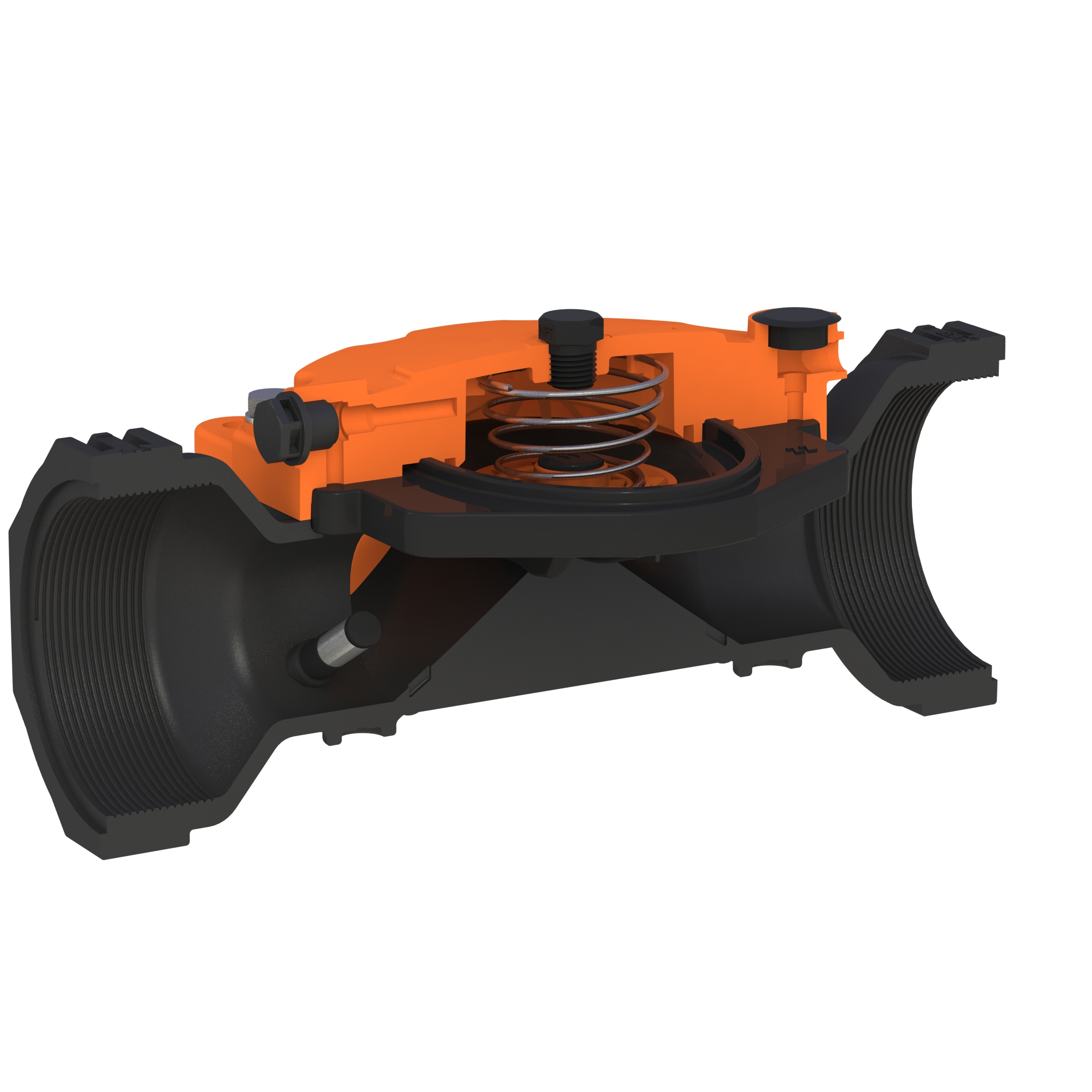

R 20 3 F SECTION 2 ISO
1

Small Chamber Volume

Rapid response design, that quickly adapts to pressure and flow changes, ensuring reliable water delivery
2

Lightweight Polymer Construction

Corrosion-resistant and easy to handle, ideal for agricultural environments
3

Control trim with self-flushing filter

Reduces periodic inspection, cleaning & maintenance, saving on labor costs
4

Advanced Elliptical-shaped Diaphragm

Enables faster, more precise valve operation, uniform system performance and better infrastructure protection
5

Structural Simplicity

Easy to maintain, provides extreme reliability & long-lasting performance in demanding conditions
6

Angle Valve Option

Allows more flexible installation in tight or complex piping configurations
7

Versatile Connections

Threaded, flanged or grooved connections to suit various irrigation setups
Technical Specifications

Size Unit

Size range

DN40 - DN200 (1½"-8")

Pressure rating

PN10

Working temperature

5ᵒ – 60ᵒ C

End connection type

Threaded, Flanged, Grooved, Solvent-welded

Standard construction materials

Body and Cover

Reinforced Nylon
Polypropylene

Internal Parts

Stainless Steel and Polymer

Seals + Diaphragm

Natural Rubber
EPDM

* Other optional materials available upon request

Control Function

1 /
