ELIPTIX R-30 X (2W)

Weir-type, Elliptical-shaped Diaphragm, 2-way, Horizontal Float, Level Control Valve

ELIPTIX R-30 X, is a Weir-type, Elliptical-shaped Diaphragm, 2-way, Horizontal Float, Level Control Valve, used to maintain a preset water level in a reservoir or water tank. The valve is activated by line pressure according to a modulating 2-way horizontal ﬂoat, which maintains a constant preset water level, to ensure the reservoir or water tank is ‘always full’ at the required preset level.

Go to R-30 Basic Valve

Technical Specifications

Size Unit

Size range

DN25 - DN400 (1"- 16")

Pressure rating

PN10, PN16

Working temperature

5ᵒ – 60ᵒ C

End connection type

Threaded, Flanged, Grooved

Standard construction materials

Body and Cover

Ductile Iron

Internal Parts

Stainless Steel and Polymer

Seals + Diaphragm

Natural Rubber

EPDM

* Other optional materials available upon request

ELIPTIX R-30 X (2W)

ELIPTIX R-30 X (2W)

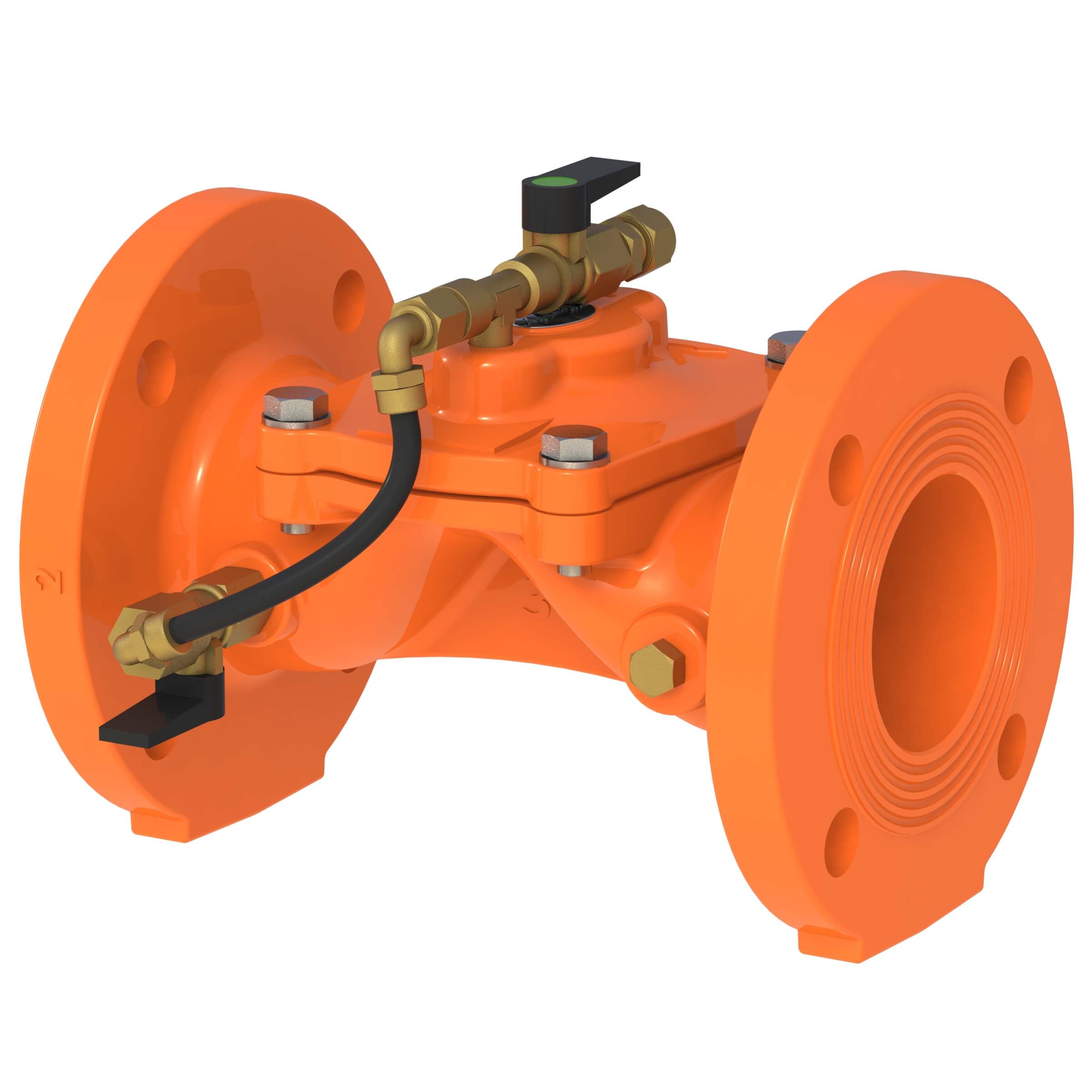

IRG ELIPTIX 5CR30X0000 03NTXH 01 right

ELIPTIX R-30 X (2W)

ELIPTIX R-30 X (2W)

IRG ELIPTIX 5CR30X0000 03NTXH 01 right
