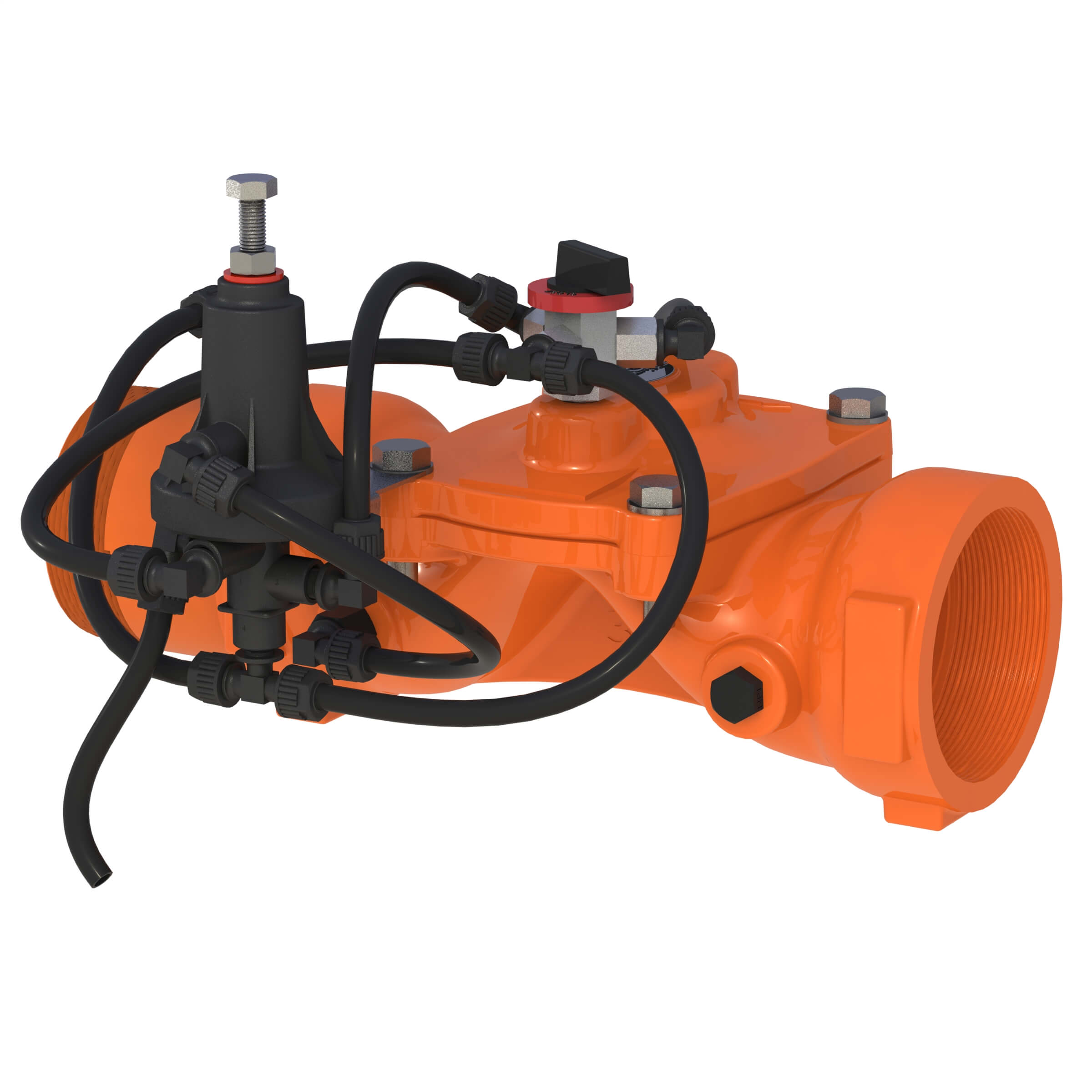

ELIPTIX R-30 MF (3W)

Weir-type, Elliptical-shaped Diaphragm, 3-way, Manual Override, Flow Control Valve

ELIPTIX R-30 MF, is a Weir-type, Elliptical-shaped Diaphragm, 3-way, Manual Override, Flow Control Valve, activated by line pressure.The valve remains partially open to allow a constant preset flow rate. Flow rate is determined by an orifice plate, where head loss across the plate is proportional to the actual flow rate. With increasing head loss the control valve automatically closes, with decreasing head loss it opens. These combined operations maintain constant flow rates, regardless of line pressure fluctuations.
