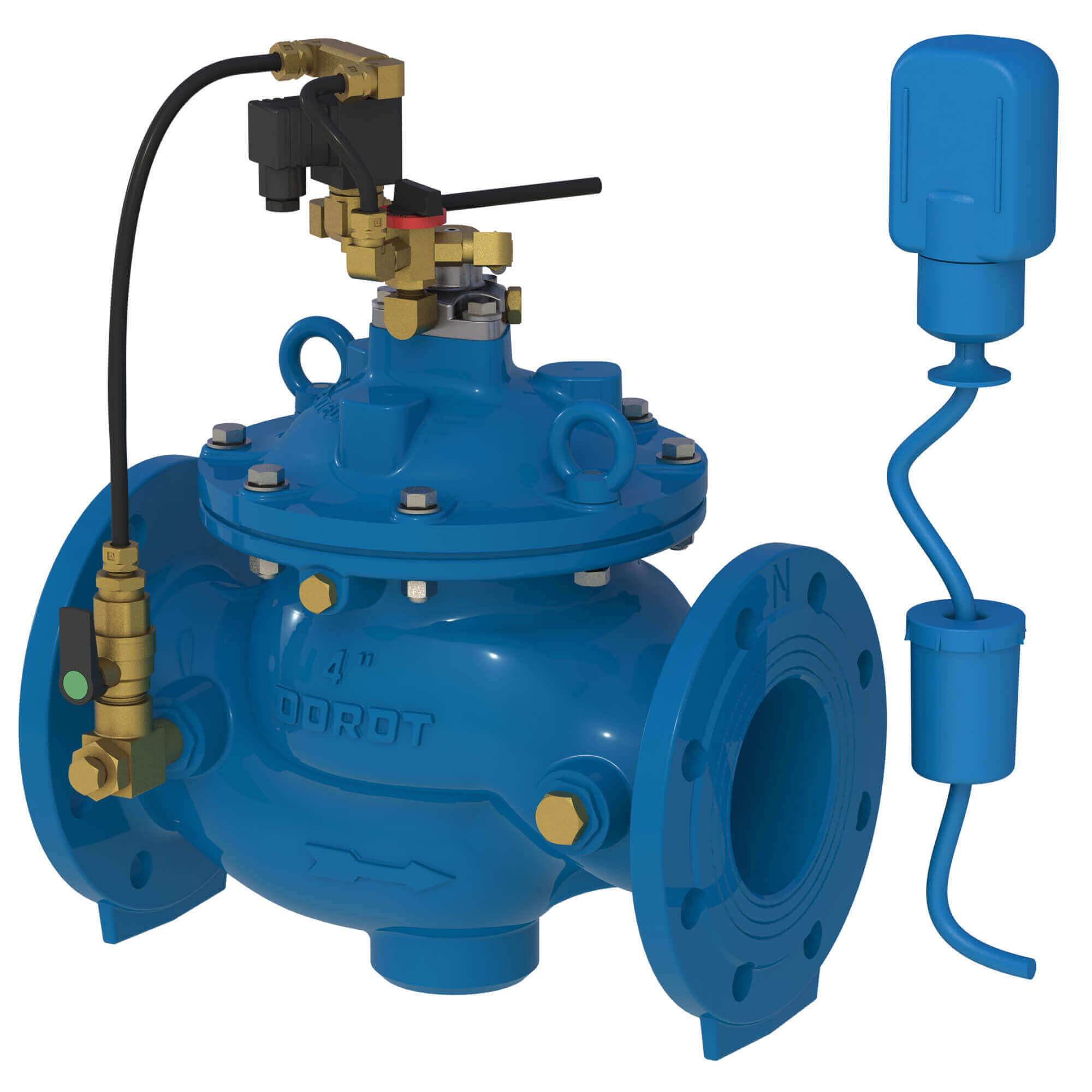

DOROT S300 FLEL (3W)

Diaphragm-actuated, Rigid Seal, 3-way Electric Float Level Control Globe Valve

DOROT S300 FLEL (3W), is a Diaphragm-actuated, Rigid Seal, 3-way Electric Float Level Control, Globe Valve. This automatic, solenoid-controlled valve is activated by the pressure of the pipeline. The valve opens at a preset low level, via command from an electric float mechanism. When levels reach a high preset value, the valve closes drip-tight.

Go to S300 Basic Valve
Downloads

BIM Model (basic valve including all hydraulic functions)

Technical Specifications

Size Unit

Size range

DN40 - DN1000 (1½”- 40")

Pressure rating

PN16, PN25

Working temperature

0ᵒ – 80ᵒ C

End connection type

Threaded, Flanged, Grooved

Standard construction materials

Body and Cover

Ductile Iron

Internal Parts

Up to DN150, 6″ – Stainless Steel

DN200, 8″ and above – Stainless Steel and Coated Steel

Seals + Diaphragm

EPDM

* Other optional materials available upon request

DOROT S300 FLEL (3W)

DOROT S300 FLEL (3W)

DOROT S300 FLEL (3W)

DOROT S300 FLEL (3W)

Features & Benefits

Superior seat design, guided by the unique LTP (Linear Throttling Plug)
  • Enables regulation to ‘near-zero’ flow as standard for all valve sizes
  • Provides high reliability and operational stability
Stainless Steel control port sleeves
  • Protects against corrosion and blockage, reducing time and cost on maintenance
Self-cleaning inline filter
  • Cuts down on frequency of inspections and maintenance, significantly reducing labor costs
Low cavitation index
  • Eliminates conditions leading to cavitation over a wide operating pressure range
No dynamic O-rings
  • Superior design reduces ongoing maintenance due to leakage or breakdowns
Simplified control system design
  • Enables smoother operation, more efficient maintenance and precise regulation
