Fueling

OCV 800H

Interface Float Pilot - Bottom Mounted

The OCV 800H is a bottom-mounted filter separator float that allows only the discharge of clean, water-free fuel from the filter separator. The three models are as follows:

800H-4MT | Part# 2302444 | Flange Material: Bronze

800H-5MT | Part# 230044 | Flange Material: Ductile Iron, Epoxy-Coated

800H-8MT | Part# 230544 | Flange Material: Aluminum

*Pilot/Float Assembly is stainless steel on all above models.

Downloads

Product Page (PDF)

EN (USA)

IOM (PDF)

EN IOM

Technical Specifications

Size Unit

Working pressure range

20.7 bar

Working temperature

0°- 49°C
OCV 800H

OCV 800H

OCV 800H

OCV 800H

Features and Benefits

Manual tester
  • Standard
Bottom-mount flange
  • 10" diameter
Low-profile float
  • Ideal for limited vertical clearance inside filter separator
Stainless steel pilot & float assembly
  • No red metals
  • Pilot float "rides" the interface between water & fuel
Four-way controls
  • Actuates discharge slug valve and/or automatic water drain valve

Related Products

OCV 800

Interface Float Pilot Block

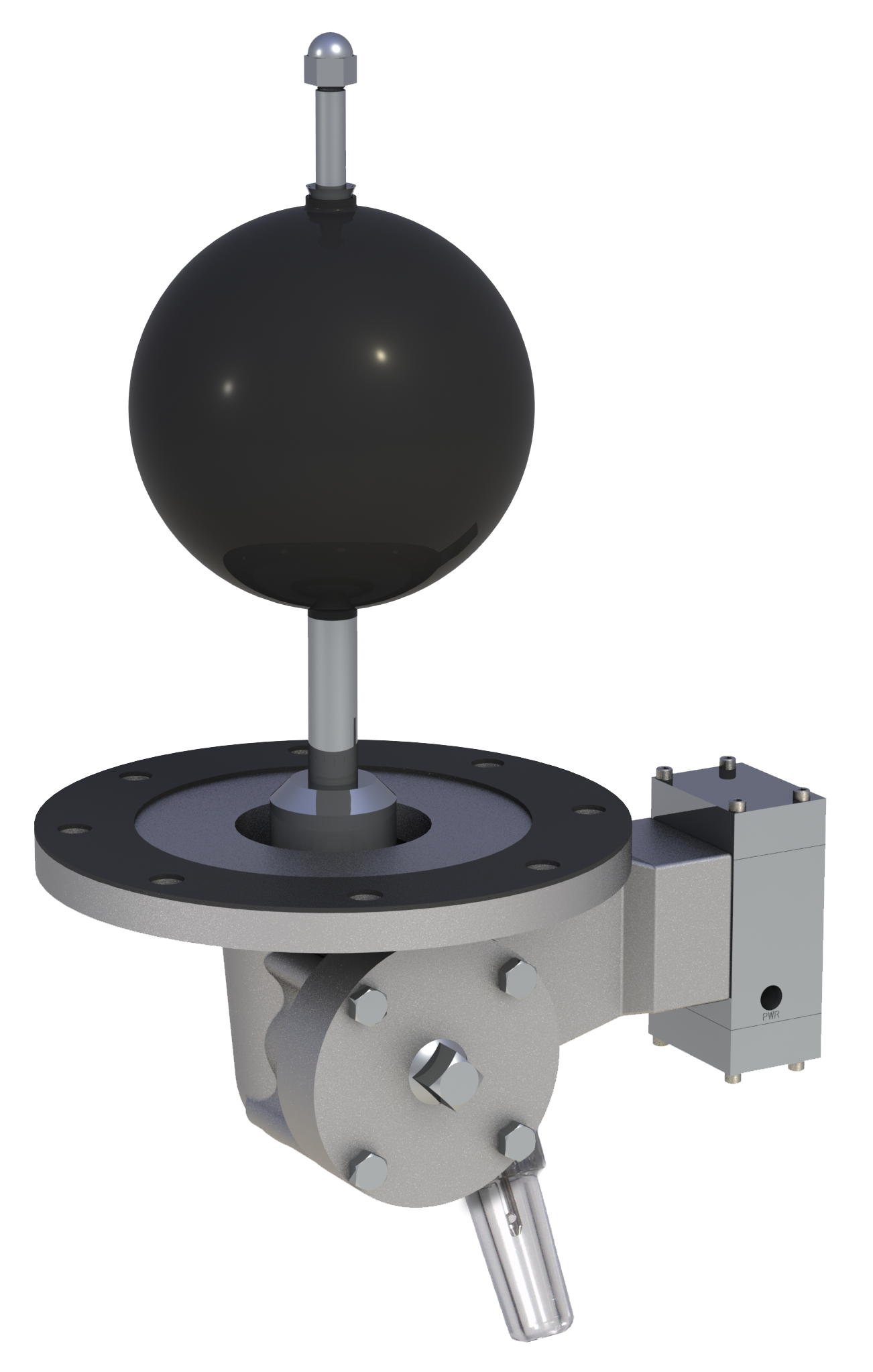

OCV AF 800B
