Fire Protection

OCV S100 68F Series

Reliable, Durable Control Valve for Easy Operation

OCV S100 68F globe valve series is a trusted solution for fire protection systems, known for its reliability, versatility, and durability. Its simple yet efficient design allows for high-flow capacity with very low head losses, ensuring a rapid and precise response in critical fire-suppression applications. The valve performs reliably across various conditions, easily managing flow from near-zero to full capacity; making it ideal for fire protection systems. Engineered to meet stringent fire protection standards, the S100 68F series guarantees dependable operation, when every second counts.

Standout Features

Suitable for large selection of fire protection applications

Precise regulation & efficient operation at minimal pressure

Engineered for high pressure & flow, with low pressure losses

Used in hazardous, flammable & explosion-classified areas

Simplified assembly with unique orientation & identical critical parts

Tested & certified: FM approval

Standout Features

Suitable for large selection of fire protection applications

Precise regulation & efficient operation at minimal pressure

Engineered for high pressure & flow, with low pressure losses

Used in hazardous, flammable & explosion-classified areas

Simplified assembly with unique orientation & identical critical parts

Tested & certified: FM approval

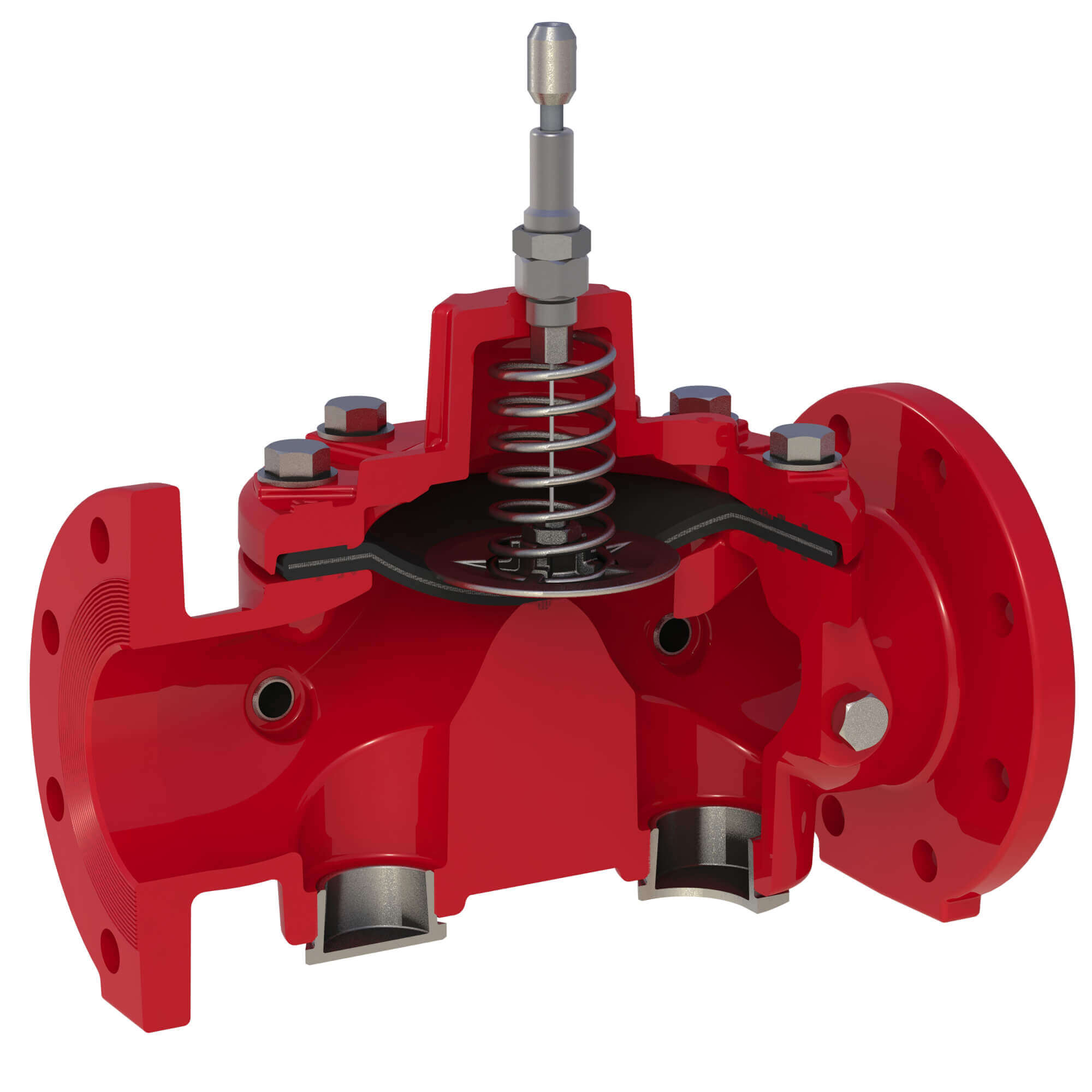

Features & Benefits

1

Position indicator (patented)

Clear view of valve position status with no dynamic O-ring
2

2 drain ports

Enhanced installation flexibility & simplified commissioning
3

Preformed, reinforced diaphragm

Provides extremely reliable, long-lasting performance
4

Simple design

3 main parts, low maintenance costs, improved reliability
5

Fail-safe design (Poka-Yoke)

Simplified assembly; prevents maintenance reassembly errors
6

Uniform bolts

Simplified assembly; fewer parts, easy maintenance & spare parts management
7

Large control port connections

Optional Stainless Steel port sleeves
Certifications
1200px Official seal of the American Recovery and Reinvestment Act of 2009

STE American Made/Recovery.gov

FM approved

FM - Deluge and Pre-action Sprinkler System 68F Models

LR

Lloyd's Register Certification

abs logo cmyk CC

ABS Certification - Control Valves

PED

Pressure Equipment Directive 2014-68-EU Certificate Rev 4

ISO 9001 BLUE

NSF ISO 9001:2015 OCV Control Valves

Downloads

Product Page (PDF)

EN

EN (USA)

BIM Model (basic valve including all hydraulic functions)

Technical Specifications

Size Unit

Size range

DN50 - DN200 (2"- 8")

Pressure rating

PN16, PN25

Working temperature

0ᵒ – 85ᵒ C

End connection type

Flanged

ISO-PN16 & ISO-PN25

ASME/ANSI B16.42 & B16.5 Class 150# & 300#

Grooved

ASME/ANSI AWWA 606

Standard construction materials

Body and Cover

Brass / Bronze / Copper (standard)

Stainless Steel

Super Duplex

Monel

NAB

Internal Parts

Stainless Steel

Diaphragm

NR (standard)

Neoprene

NBR

EPDM

Control Trim & Accessories

Brass / Bronze / Copper (standard)

Stainless Steel

Super Duplex

Monel

NAB

* Other optional materials available upon request

Control Functions

Deluge Valves
Pre-action Valves
Pressure Regulation
Flow Regulation
Level Control
On/Off
  • Deluge Valves
  • Pre-action Valves
  • Pressure Regulation
  • Flow Regulation
  • Level Control
  • On/Off
OCV 68F DE\PTMR
Pneumatically Actuated, Manual Reset Deluge Valve
OCV 68F DE\EL-MR
Electrically Actuated Manual Reset Deluge Valve
OCV 68F DE\EL\PTMR
Electrically or Pneumatically Actuated, Manual Reset Deluge Valve
OCV FP 68F DE EL PTMR PRF
OCV 68F DE\EL\PTMR\PRF
Electrically or Pneumatically Actuated, Manual Reset Deluge Valve
OCV FP 68F DE PTMR PR (PRF)
OCV 68F DE\PTMR\PRF
Pressure Reducing, Pneumatically Actuated, Manual Reset Deluge Valve
OCV 68F FP DE RCL PR (PRF)
OCV 68F DE\RCL\PRF
Pressure Reducing, Electrically Actuated, Manual Reset Deluge Valve
