OCV 120

Diaphragm-Actuated, Rigid Sealing, Flow-Rate Control Globe Valve

OCV 120, is a diaphragm-actuated, rigid sealing, flow-rate control globe valve, activated by the pressure of the pipeline. The valve limits the flow rate in the system to a preset value, regardless of any upstream/downstream pressure variations. The valve fully opens when flow rate drops below a preset point.

Go to S65 Basic Valve

Certifications

1200px Official seal of the American Recovery and Reinvestment Act of 2009

STE American Made/Recovery.gov

PED

Pressure Equipment Directive 2014-68-EU Certificate Rev 4

ISO 9001 BLUE

NSF ISO 9001:2015 OCV Control Valves

Downloads

IOM (PDF)

Technical Specifications

Size Unit

Size range

DN32 - DN600 (1¼”- 24")

Pressure rating

PN16, PN50

Working temperature

110ᵒ C Max

End connection type

Threaded

Flanged

Grooved

Materials of construction

Body

Ductile Iron (standard)

Stainless Steel

Cast Steel

Super Duplex

Hastelloy

Internal Parts

Stainless Steel

Trim Material

Stainless Steel

Diaphragm

EPDM

Elastomers

EPDM (standard)

Viton®

* Other optional materials available upon request

OCV 120

OCV 120

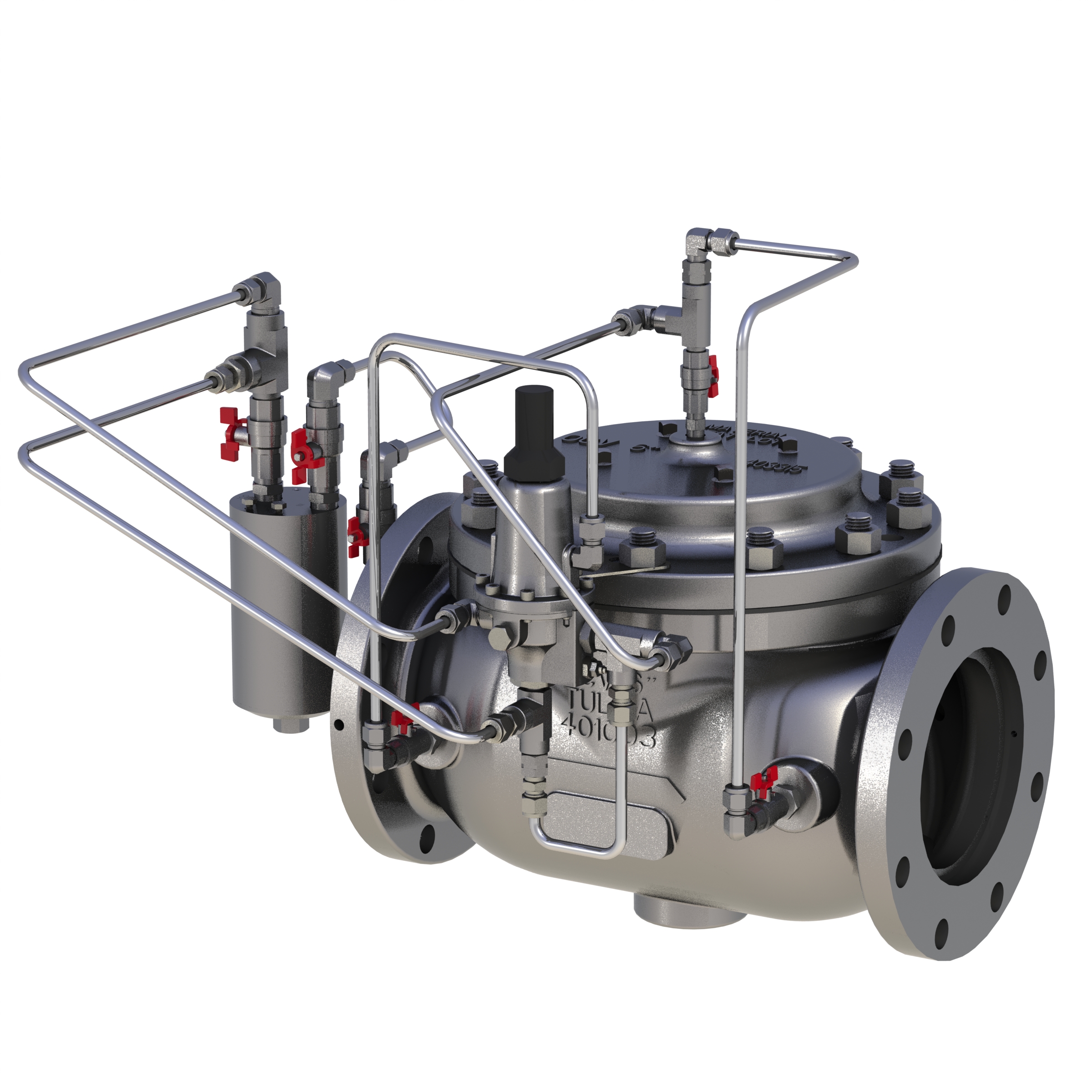

OCV MN 120 left App

OCV 120

OCV 120

OCV MN 120 left App

Features & Benefits

Designed for mining — built to perform in the harshest conditions

Engineered to minimize cavitation and extend service life
Delivers consistent performance with high stability
Optimized for high pressure and non-clean fluids applications

Single valve series covering a wide pressure range — up to 740 psi with a single body

Same body for low and high pressure applications
No need to switch valve series — simplifies selection and maintenance
Reduces spare parts inventory — lowers cost and streamlines logistics

The control-trim is fitted with a HIGH-CAPACITY control filter suitable for industrial applications

Increases valve reliability and reduces periodic inspection/maintenance labor

Stainless Steel position indicator rod (optional)

Enables smooth, precise tracking of valve positions
