Waterworks

OCV 120-2

Rate of Flow/Pressure Reducing Valve

OCV 120-2, a rate of flow/pressure reducing valve, reduces higher upstream pressure to a constant, lower downstream pressure, while limiting the flow to a predetermined rate.

Go to Series 65 Basic Valve
Certifications
1200px Official seal of the American Recovery and Reinvestment Act of 2009

STE American Made/Recovery.gov

abs logo cmyk CC

ABS Certification - Control Valves

PED

Pressure Equipment Directive 2014-68-EU Certificate Rev 4

ISO 9001 BLUE

NSF ISO 9001:2015 OCV Control Valves

Downloads

Product Page (PDF)

EN

EN (USA)

IOM (PDF)

EN

Technical Specifications

Size Unit

Size range

DN32 - DN600 (1¼”- 24")

Pressure rating

PN16, PN25

Working temperature

110ᵒ C Max

End connection type

Threaded

Flanged

Grooved

Materials of construction

Body and Cover

Ductile Iron

Stainless Steel

Cast Steel

Aluminum

Internal Parts

Stainless Steel

Trim Material

Stainless Steel

Low-Lead Bronze/Brass

Copper

Diaphragm

EPDM

Buna-N

Elastomers

EPDM

Buna-N

* Other optional materials available upon request

OCV 120-2

OCV 120-2

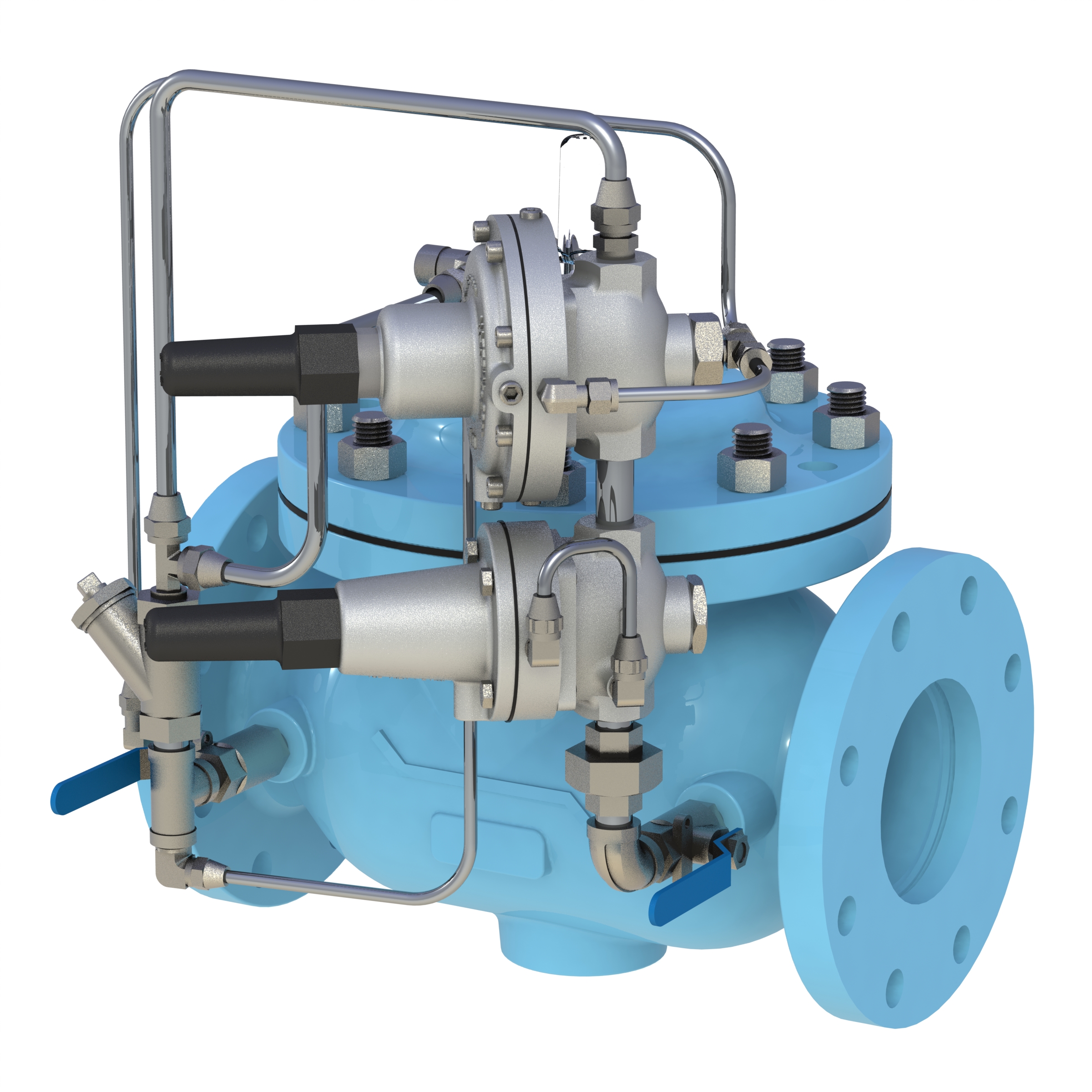

OCV WW 120 2 RB

OCV 120-2

OCV 120-2
OCV WW 120 2 RB

Features & Benefits

Robust valve with superior design
  • Quick opening; non-slam closing operation
  • Reliable for increased longevity
Simple & reliable construction
  • 3 major components
  • High-grade construction materials
  • Lower maintenance costs
Tapered throttling seat rerainer
  • Reliable flow & pressure stability
Out-of-the-box valves, fully assembled & tested
  • Plug & play, quick & easy installation
  • Suited to vertical & horizontal installation, with no modifications
Internally & externally epoxy-coated
  • Maximum corrosion protection
Tested & certified
  • UL Listed, ABS Type Approval, FM, NSF
