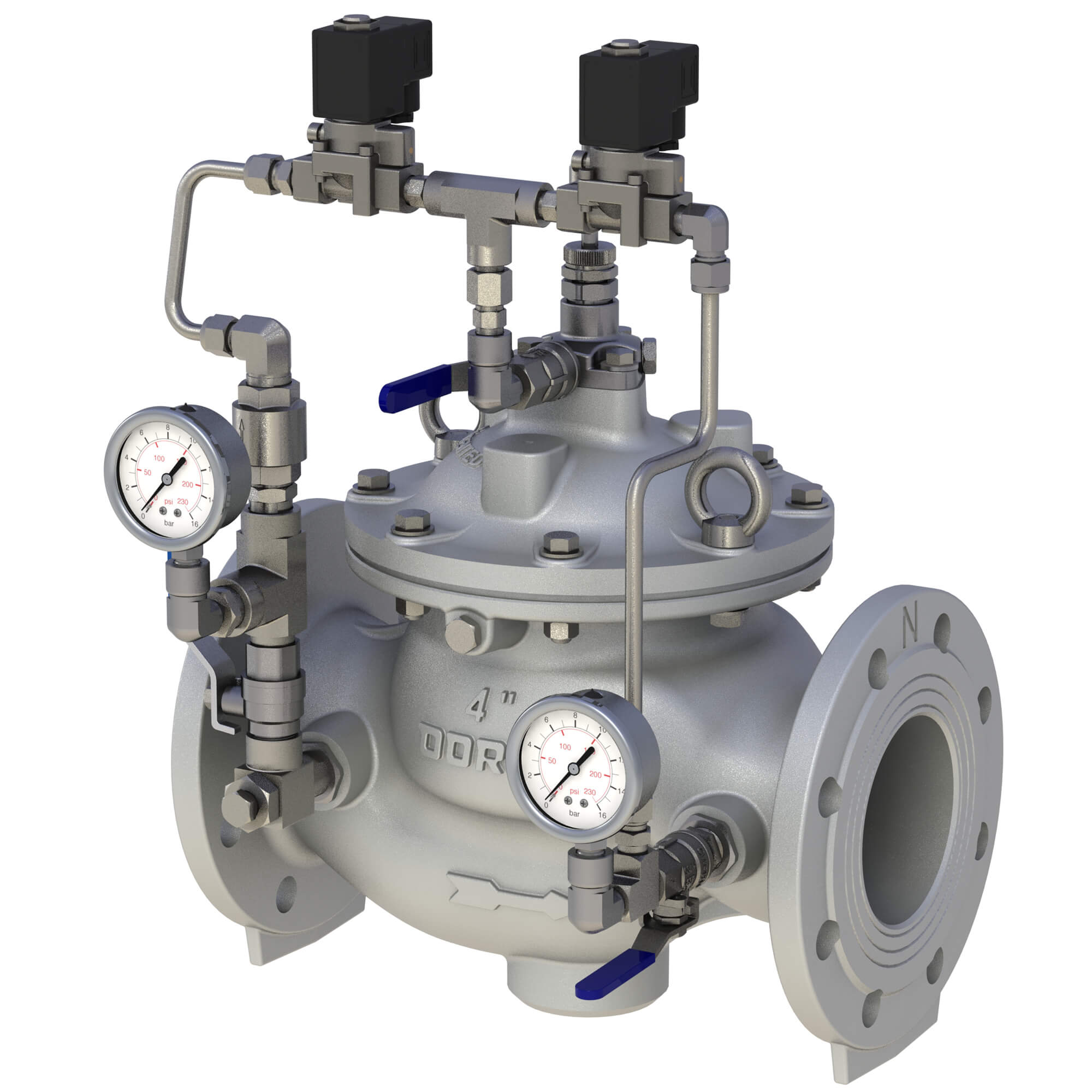

DOROT S300 EC (2W)

Diaphragm-actuated, Rigid Seal, 2-way Electronically-controlled Globe Valve

DOROT S300 EC (2W), is a is a Diaphragm-actuated, Rigid Seal, 2-way Electronically-controlled Globe Valve. Valve position is modulated by two solenoid valves in the control system. An electronic controller actuates the solenoid valves in order to adjust main valve position; thus, maintaining a preset value in the system, according to a specified control function.

Go to S300 Basic Valve
Downloads

Product Page (PDF)

EN

ES

FR

IOM (PDF)

EN

BIM Model (basic valve including all hydraulic functions)

2D Files (basic valve)

3D Files (basic valve)

Technical Specifications

Size Unit

Size range

DN40 - DN1000 (1½”- 40")

Pressure rating

PN16, PN25

Working temperature

0ᵒ – 80ᵒ C

End connection type

Threaded, Flanged, Grooved

Standard construction materials

Body and Cover

Stainless Steel

Internal Parts

Stainless Steel

Seals + Diaphragm

EPDM

* Other optional materials available upon request

DOROT S300 EC (2W)

DOROT S300 EC (2W)

DOROT S300 EC (2W)

DOROT S300 EC (2W)

Features and Benefits

Superior seat design, guided by the unique LTP (Linear Throttling Plug)
  • Enables regulation to ‘near-zero’ flow as standard for all valve sizes
  • Provides high reliability and operational stability
Stainless Steel control port sleeves
  • Protects against corrosion and blockage, reducing time and cost on maintenance
Self-cleaning inline filter
  • Cuts down on frequency of inspections and maintenance, significantly reducing labor costs
Low cavitation index
  • Eliminates conditions leading to cavitation over a wide operating pressure range
No dynamic O-rings
  • Superior design reduces ongoing maintenance due to leakage or breakdowns
Safety air release
  • Easily removes air from the control valve chamber, to ensure stability and optimal system performance
