DOROT S100 Series

Reliable, Durable Control Valve for Easy Operation & Maintenance

DOROT S100 globe valve series has a reputation for reliability, versatility and durability. Its simple yet efficient design allows for high flow capacity and very low head losses, using a flexible direct-sealing diaphragm that ensures long life and easy maintenance. The valve performs reliably across various conditions, easily managing flow from near-zero to full capacity.

Standout Features

Near zero flow regulation for optimal water management

Self-cleaning inline filter, flushes debris during operation

Flexible installation for a range of configurations

Cavitation resistance flow dynamics

Reduces the need for maintenance, while enhancing reliability

Globe & angle patterns, with various end connections

Standout Features

Near zero flow regulation for optimal water management

Self-cleaning inline filter, flushes debris during operation

Flexible installation for a range of configurations

Cavitation resistance flow dynamics

Reduces the need for maintenance, while enhancing reliability

Globe & angle patterns, with various end connections

Features & Benefits

1

Structural simplicity - only 4 parts

Allows for easy maintenance and provides extremely reliable, long-lasting performance
2

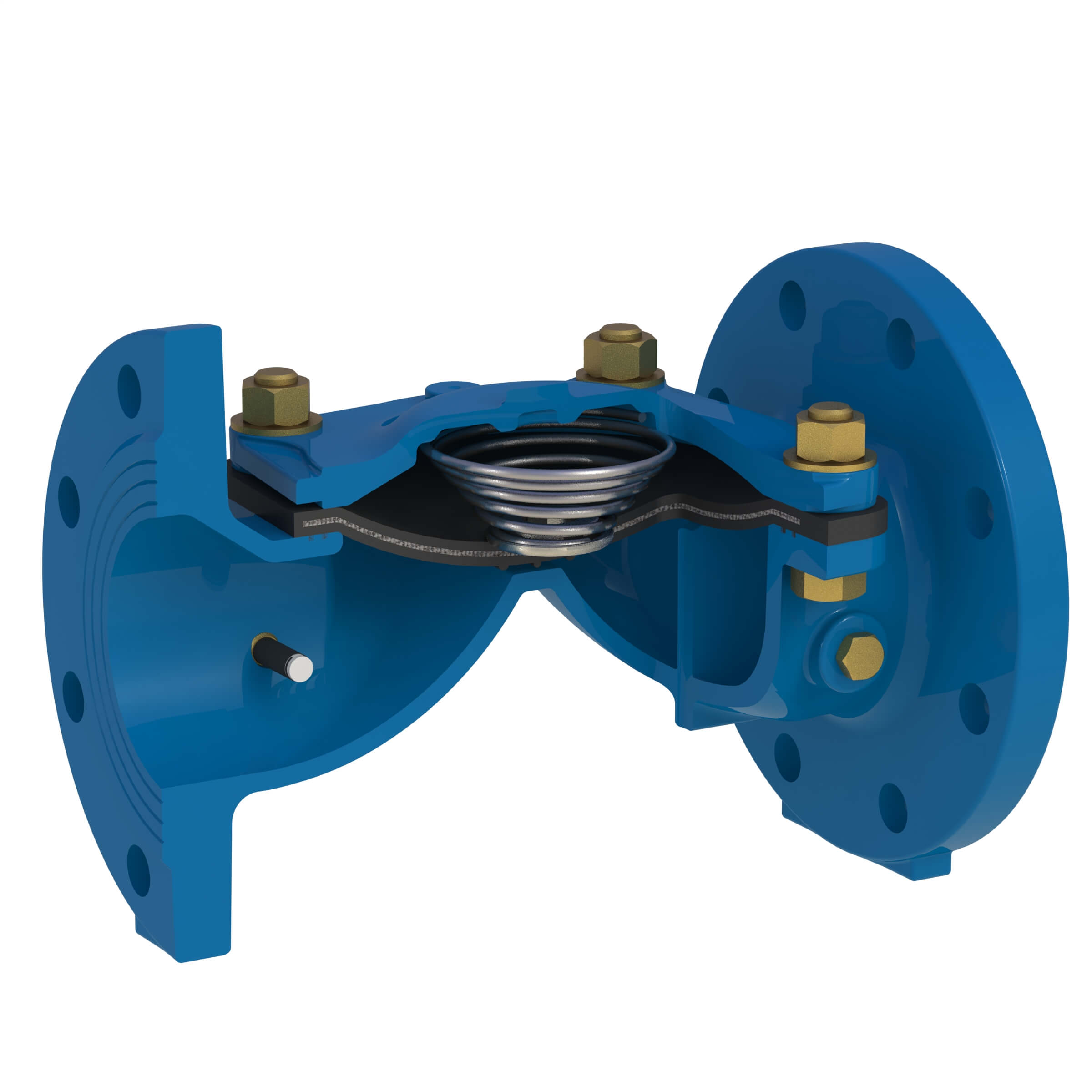

Preshaped, reinforced diaphragm design

Provides extremely reliable, long-lasting performance
3

Self-cleaning inline filter

Allows continuous, efficient, valve operation with less maintenance
Downloads

Product Page (PDF)

EN

BIM Model (basic valve including all hydraulic functions)

DOROT S100

2D Files (basic valve)

3D Files (basic valve)

Technical Specifications

Size Unit

Size range

DN20 - DN600 (¾"- 24")

Pressure rating

PN16, PN25

Working temperature

0ᵒ – 80ᵒ C

End connection type

Threaded, Flanged, Grooved

Standard construction materials

Body and Cover

Cast Iron

Internal Parts

Stainless Steel and Polymer

Seals + Diaphragm

Natural Rubber

* Other optional materials available upon request

Control Functions

Pressure Regulation
Flow Regulation
Level Control
On/Off
Safety
Electronic
  • Pressure Regulation
  • Flow Regulation
  • Level Control
  • On/Off
  • Safety
  • Electronic
DOROT S100 PS/M (3W)
Weir-type Diaphragm, 3-way Pressure Sustaining/Relief Globe Valve
DOROT S100 PR/M (3W)
Weir-type Diaphragm, 3-way Pressure Reducing Globe Valve
DOROT S100 DI/M (3W)
Weir-type Diaphragm, 3-way Pressure Differential Sustaining Globe Valve
