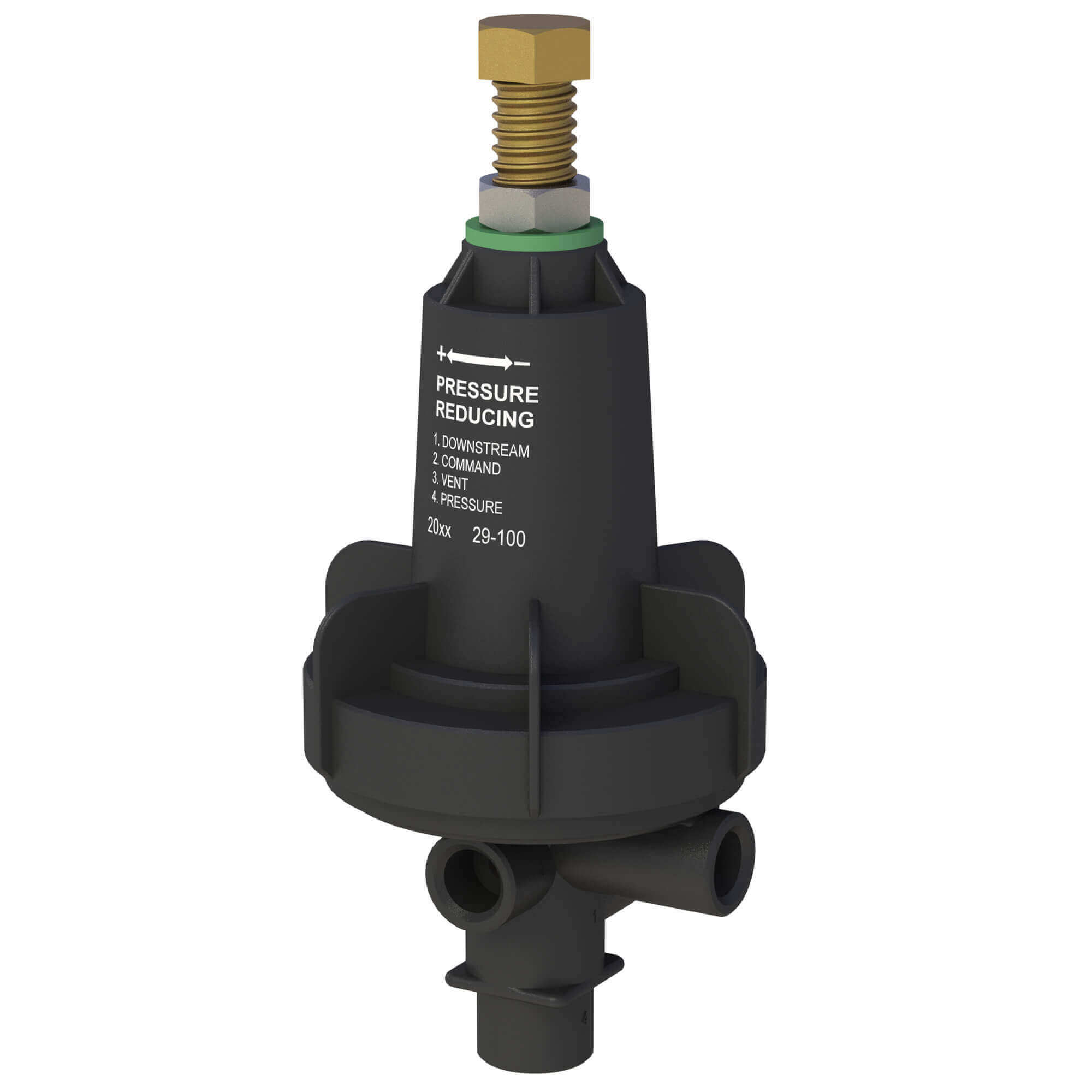

DOROT 29-100, is a Diaphragm-actuated, 3-way Spring-loaded, Pressure Reducing Polymeric Pilot Valve, designed for control of pressure-reducing hydraulic valves.
Operation principle
The pilot valve operates as a selector between the common port and the two other ports. The pilot valve will vent, pressurize or lock the hydraulic valve control chamber, as a factor of the relation between the regulated pressure and the adjusted preset value.
Size Unit
Pressure rating
Pressure adjustment range
Max. working temperature
Port connections
Standard construction materials
Body and Bonnet
GRP
Elastomers
NBR
Internal Parts
Stainless Steel
Spring
Stainless Steel
* Other optional materials available upon request
