Irrigation

A.R.I. NR-010

Wafer Style Check Valve

A.R.I. NR-010 Check Valve allows for one-directional flow, preventing the return flow of the liquid to its source and provides quiet closure and total sealing of the sealing face.

Downloads

Product Page (PDF)

EN

ES

IOM (PDF)

EN

ES

Technical Specifications

Size Unit

Size range

DN40, DN50 (1½”, 2”) female threaded - BSPT / NPT, DN80-DN250 (3”-10”) between flanges

Working pressure range

Sizes DN40-DN250 (1½”-10”)

0.2 - 10 bar

Sizes DN40-DN200 (1½”-8”)

0.2 - 16 bar

Working temperature

Maximum working temperature:

60° C
A.R.I. NR-010

A.R.I. NR-010

A.R.I. NR-010 LS

A.R.I. NR-010 2"

A.R.I. NR-010 FV

NR 010 4 RED ISO

A.R.I. NR-010

NR 010 6 RED ISO

A.R.I. NR-010

NR 010 6 LS RED ISO

A.R.I. NR-010

NR 010 4 FV RED ISO

A.R.I. NR-010

A.R.I. NR-010
NR 010 4 RED ISO
NR 010 6 RED ISO
NR 010 6 LS RED ISO
NR 010 4 FV RED ISO

Features and Benefits

UV resistant polymers, reinforced and rubber materials
  • Corrosion and scale resistant, long working life
Quick, spring-assisted closure
  • Water hammer mitigation
Specially chosen materials
  • Withstands highly abrasive conditions, long-term service in corrosive liquid environments
Removable cover (1½", 2" models)
  • Easy cleaning, maintenance and seal replacement without need to remove from the pipeline
Spring assembly mechanism outside the flow (3"- 10" models)
  • Easily maintained without need to remove from the pipeline

Related Products

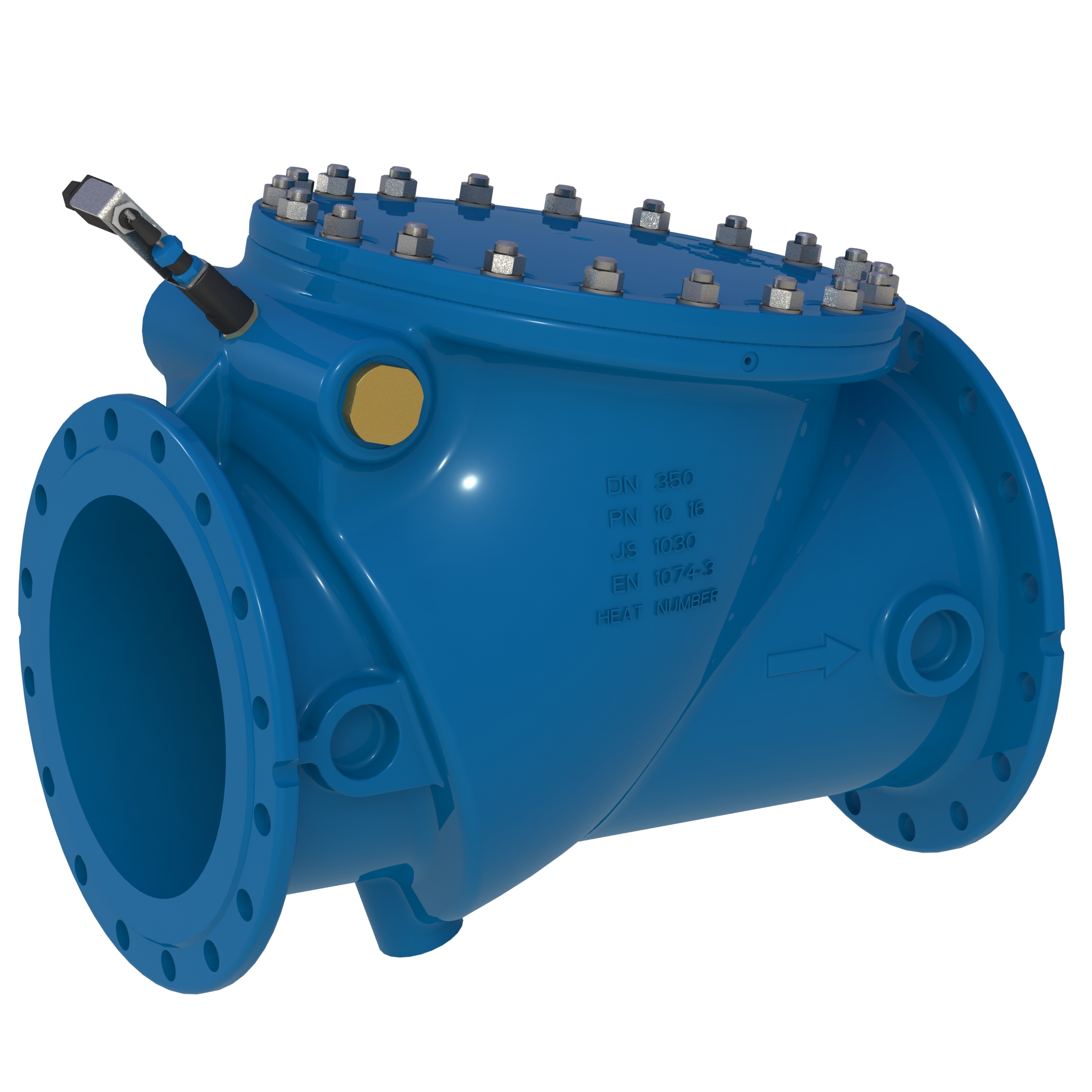

NR 047 14 MAINTENANCE ISO
