A.R.I. D-050 is a reduced bore Combination Air Valve Series. Installed on liquid transmission systems, the Air Valve is designed to improve hydraulic operation by protecting the pipeline, increasing pipeline efficiency and reducing energy requirements.
Applicable for: Desalination & Seawater, Mines, Marine - Ballast Water, Oil &
Gas, Food Industry, Power Plant Cooling, CBM, Hydro / Thermal Power.
Product Page (PDF)
IOM (PDF)
Size Unit
Size range
Pressure rating
Working pressure range
A.R.I. D-050 L
0.05 - 16 barA.R.I. D-050
0.2 - 16 barA.R.I. D-052
0.2 - 25 barA.R.I. D-055
0.2 - 40 barWorking temperature
Maximum working temperature:
60° CMaximum intermittent temperature:
90° CAvailable construction materials
Stainless Steel, Cast Steel, Super Duplex
End connection type
Threaded male BSPT/NPT (2”)
Flanged ends to meet various requested standard (2”-12”)
Optional add-on components
One-way out attachment, allows for air discharge only, prevents air intake.
One-way In attachment, allows air intake only, not allowing air discharge.

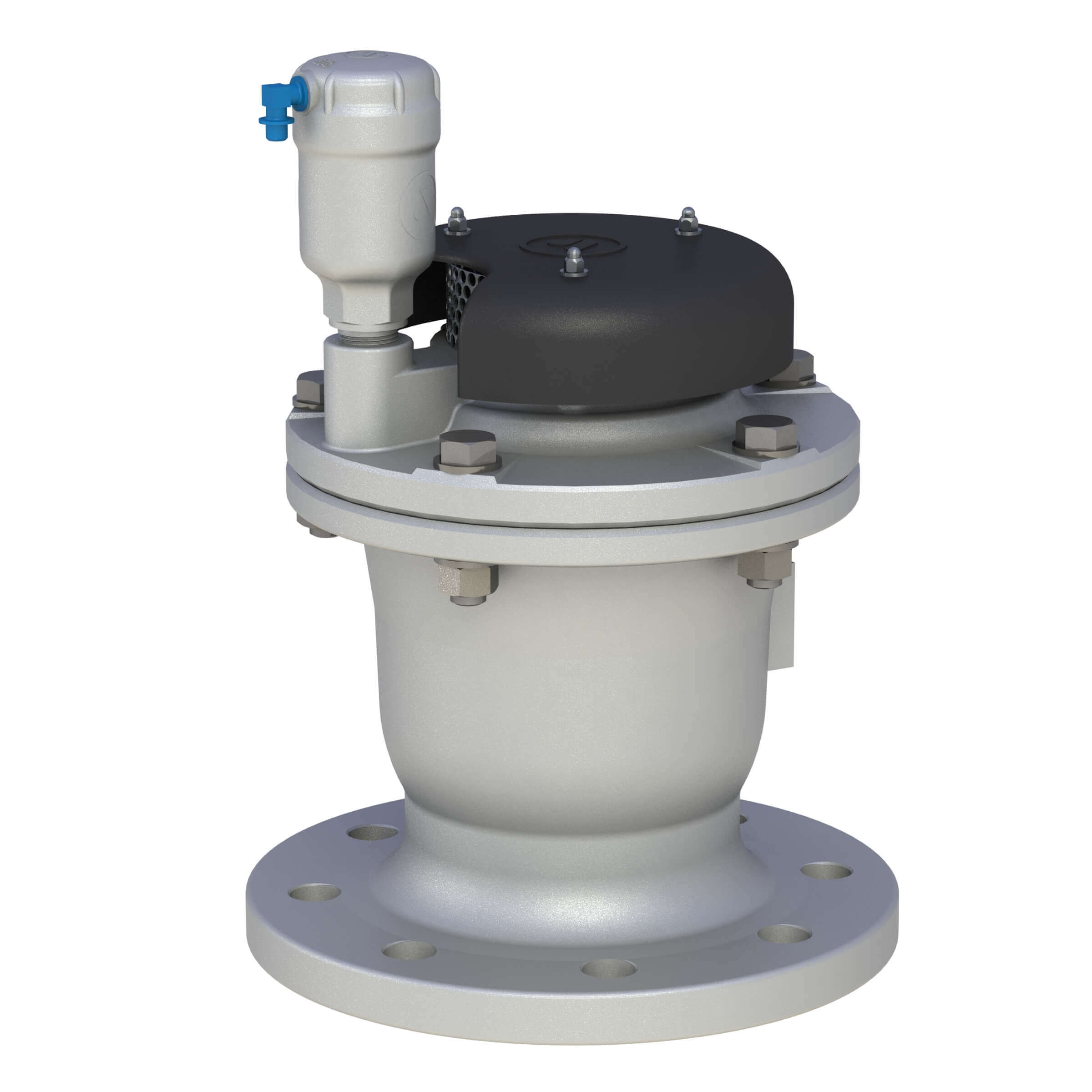

A.R.I. D-050

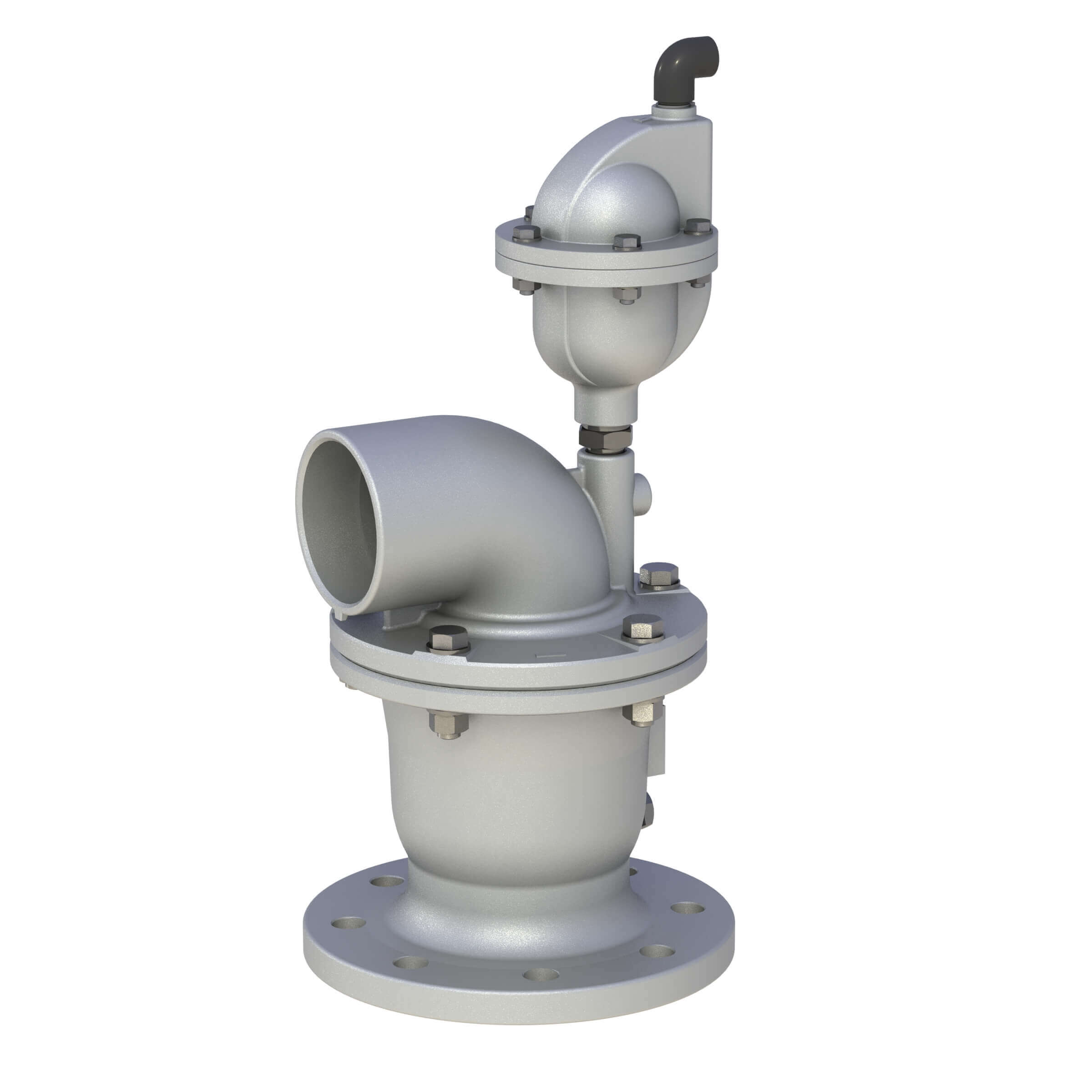

A.R.I. D-055

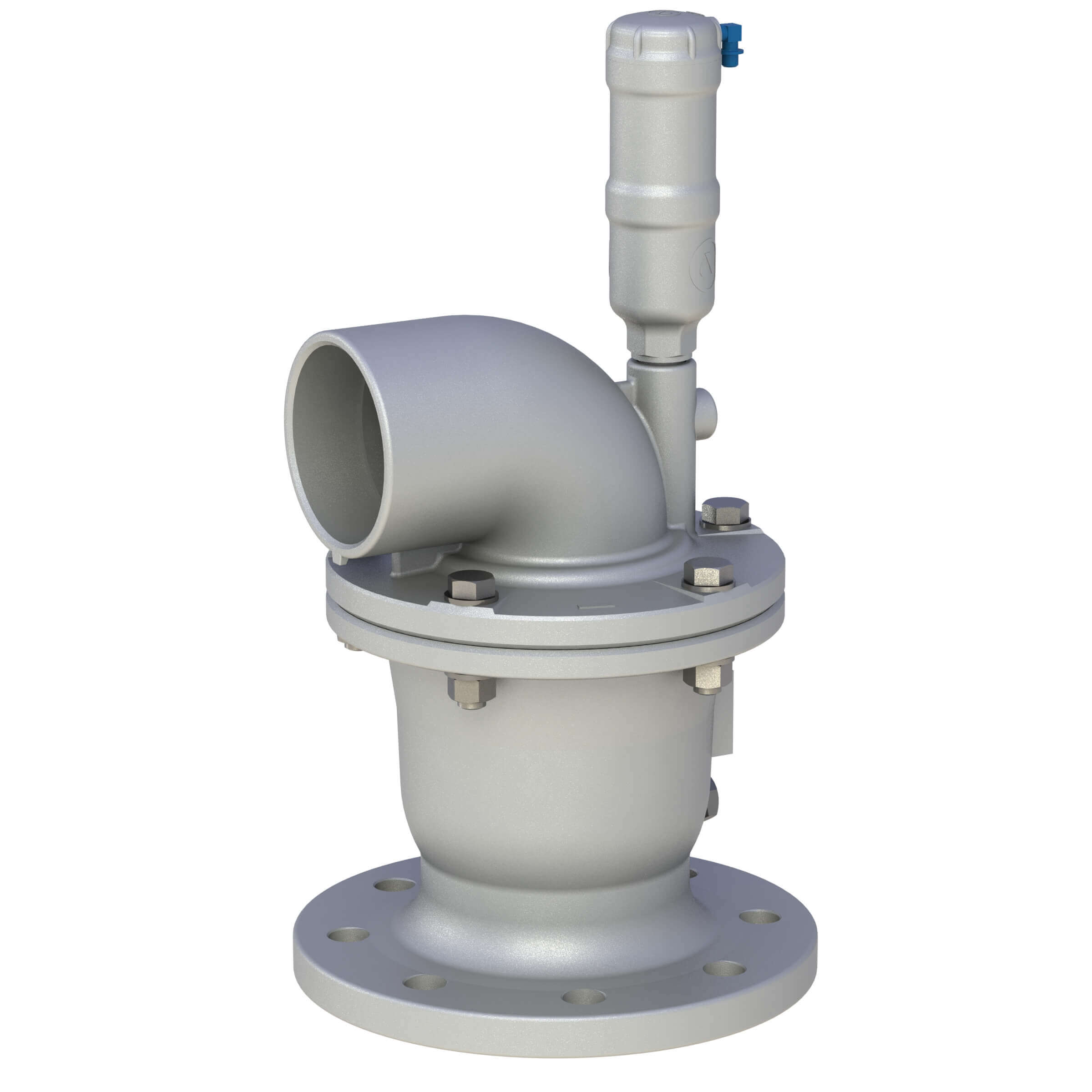

A.R.I. D-050 L
A.R.I. D-050
D-050 in action
